KIRCHNER UND TOCHTER差壓流量計DDM-DS11技術參數
Technical data | |
Measuring principle | differential pressure measurement on the orifice |
Perm. ambient temperature | -10 ... +70 °C |
Perm. medium temperature* | standard -10 ... +70 °C max. 130 °C (insulated line) optionally HT-Type above 130 °C |
Display unit | mechanical differential pressure measuring unit |
In-between flange (DN) | for PN 10/PN 16 flanges acc. to DIN EN 1092-1 shape A & B |
Pipe union (Rp) | two-part pipe fitting insert with cylindrical internal thread acc. to DIN EN 10226-1 (ISO 7-1) |
External thread (Ga) | cyl. external thread acc. to DIN EN ISO 228 |
Internal thread (Gi) | cyl. internal thread acc. to DIN EN ISO 228 |
KIRCHNER UND TOCHTER差壓流量計產品介紹
with differential pressure gauge DS11
optionally up to two microswitches
installation between flanges as per DIN EN 1092-1, internal and external threads as per DIN EN ISO 228 or with pipe union as per ISO 7-1
one device for all installation situations and flow directions
suitable for liquids and gases
no moving parts, wear-free
calibration for standard measuring ranges or as per customer specification
metering range 1:6
accuracy 5% FS
Design and applications

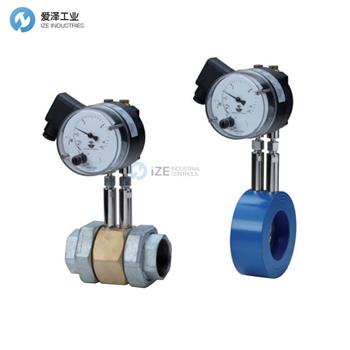

The DDM-DS11 metering orifice measures and monitors the flow rate of liquids.
The device works according to the principle of differential pressure.
At the orifice, a differential pressure drop occurs, which is square proportional to the volume flow rate passing the conduit.
The user mounts the orifice between flanges or with Rp pipe unions into the conduit. The unimpeded, straight tube length has to be 6 DN before and 4 DN behind the mounting position.
The DS11 gauge contains a rugged and uncomplicated diaphragm system. The differential pressure generates a unilateral force at the membrane which moves the diaphragm system against the measuring range springs. A centre-mounted tappet transfers motion of the diaphragm system to indicator movement and to initiating elements of the microswitches. Due to the completely mechanical functionality, no external power supply is needed. The applications of DDM-DS11 are engineering and process technology such as the monitoring of coolant streams in plants.
The display pressure gauge can be equipped with one or with two microswitches.
帶有差壓表DS11
可選多達兩個微動開關
根據DIN EN 1092-1在法蘭之間進行安裝，根據DIN EN ISO 228進行內外螺紋連接，或者根據ISO 7-1進行管道連接
一臺用于所有安裝情況和流向的設備
適用于液體和氣體
無活動部件，無磨損
校準標準測量范圍或根據客戶要求
測光范圍1：6
精度5％FS
設計與應用
DDM-DS11計量孔板可測量和監控液體的流量。
該設備根據壓差原理工作。
在孔口處會出現壓降，該壓降與通過導管的體積流量成正比。
用戶可以將孔口安裝在法蘭之間或通過Rp管接頭安裝到導管中。暢通無阻的直管長度必須在安裝位置之前6 DN，在安裝位置后面4 DN。
DS11壓力表包含堅固耐用的隔膜系統。壓差在膜片上產生單向力，使膜片系統靠著測量范圍彈簧移動。中心安裝的挺桿將隔膜系統的運動傳遞至指示器的運動以及微動開關的啟動元件。由于完全具有機械功能，因此無需外部電源。 DDM-DS11的應用是工程和工藝技術，例如監測工廠中的冷卻劑流。
顯示壓力表可以配備一個或兩個微型開關。
