KUBLER編碼器5820系列產品參數
Specification | ||
Output circuit: | Sine wave U = 1 Vpp | Sine wave U = 1 Vpp |
Supply voltage: | 5 V (±5%) | 10 ... 30 V DC |
Current consumption (no load) with inverted signals: | typ. 65 mA / max. 110 mA | typ. 65 mA / max. 110 mA |
-3 dB frequency: | ≤180 kHz | ≤180 kHz |
Signal level channels A/B: | 1 Vpp (±20%) | 1 Vpp (±20%) |
Signal level channel 0: | 0.1 ... 1.2 V | 0.1 ... 1.2 V |
Short circuit proof outputs:1): | yes | yes |
Reverse connection protection at UB: | no | yes |
UL certified | File 224618 |

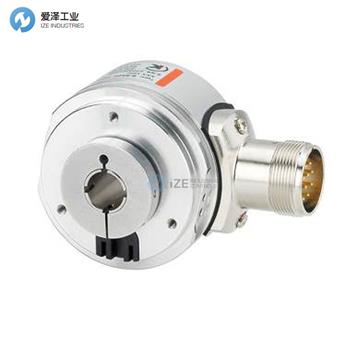

KUBLER編碼器5820系列產品介紹
符合行業標準的堅固型號，?58mm外殼
?許多變體，也可以定制
?防短路輸出
?反向連接保護（UB = 10 ... 30 V DC時）
?高度靈活的PUR電纜
?分辨率高達36000 ppr
?高軸負荷
軸/空心軸
5800/5820：標準
5803/5823：高溫高達110°C
5804/5824：電壓正弦波輸出
5805：高分辨率高達36000 ppr
5826：不銹鋼外殼
Sturdy model to industry standard,?58 mm housing
? Many variations, also customized versions
? Short-circuit proof outputs
? Reverse connection protection(at UB= 10 ... 30 V DC)
? Highly flexible PUR-cable
? Resolution up to 36000 ppr
? High shaft load
Shaft/hollow shaft
5800/5820: Standard
5803/5823: High temperature up to 110 °C
5804/5824: Voltage sine wave outputs
5805: High resolution up to 36000 ppr
5826: Stainless steel housing

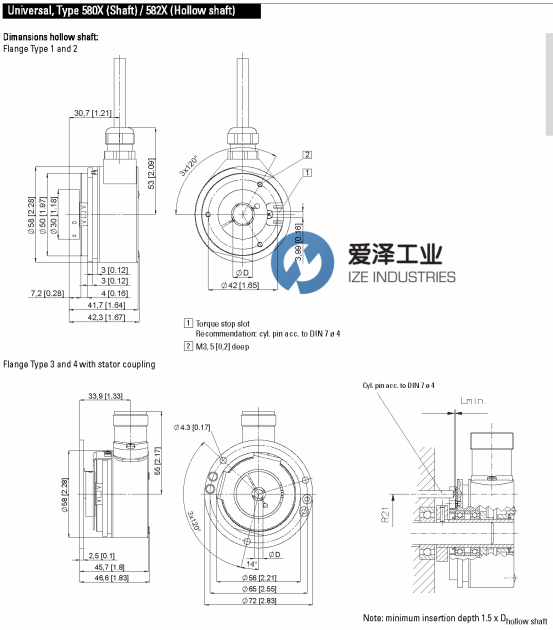

外觀尺寸

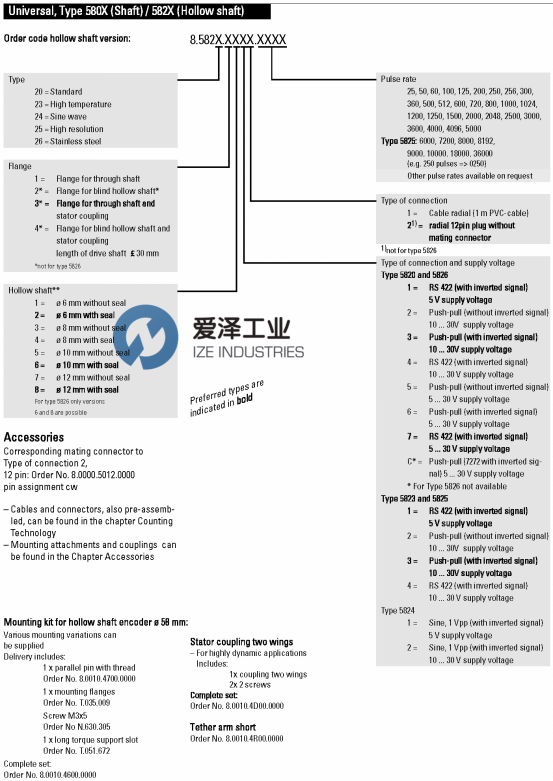

選型參考
KUBLER編碼器5820系列其他常見型號：
KUBLER 8.5820.1F2C.3000
KUBLER 8.5820.1F2C.3600
KUBLER 8.5820.1F2C.4000
KUBLER 8.5820.1F2C.4096
KUBLER 8.5820.1F2C.5000
KUBLER 8.5820.1F2C.2000
KUBLER 8.5820.1F2C.1500
KUBLER encoders NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KUBLER編碼器8.5820.1F21.2500的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KUBLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
KUBLER編碼器8.5820.1F21.2500產品參數
