THERMO RAMSEY傳感器產品參數
Specification |
PROBES Below) |
Contact Rating: |
( Model 20-41 ) 4 amperes at 110 VAC. |
( All Other Probes ) 1 ampere at 24 VDC, |
Non-inductive |
Temperature Rating: |
-250F - 1800 F Standard |
1800F - 3900 F Special (20-39 C Series) |
Below -250F (20-39 B series) |
CONTROL UNIT |
Relay Contact Rating: |
10 amperes at 115 VAC, non-inductive |
( DPDT Contact Agreement ) |
Time Delay: |
0-10 seconds, adjustable |
Temperature Rating: |
-40℉- +158℉ |
-40℃ - +70℃ |
Case Size: |
( Model 20-43 ) |
6.89" high x 4.92" Wide x 3.90" Deep |
Printed Circuit Board Size: |
( Model 20-43-1 ) 5.95" High x 4.4" Wide |
Circuitry: |
Selection of vertical or tilted probe position for '"normal" condition |
Power Requirements: |
20-43, 20-30 (metal b0K) are available in 110 or 220 VAC versions, 5D/60Hz |

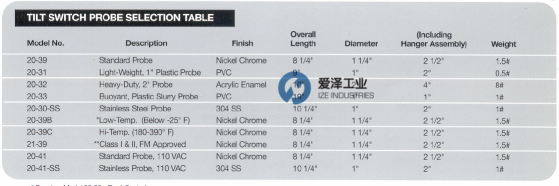

THERMO RAMSEY傳感器選型
THERMO RAMSEY傳感器20-39B其他常見型號：
THERMO RAMSEY 20-39
THERMO RAMSEY 20-31
THERMO RAMSEY 20-32
THERMO RAMSEY 20-33
THERMO RAMSEY 20-30-SS
THERMO RAMSEY 20-39B
THERMO RAMSEY 20-39C
THERMO RAMSEY 20-41
THERMO RAMSEY sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于THERMO RAMSEY傳感器20-39B的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for THERMO RAMSEY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

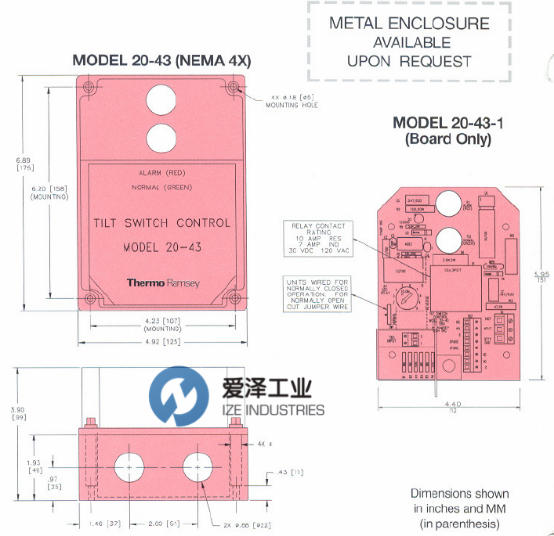

THERMO RAMSEY傳感器20-39B產品介紹及外觀尺寸
