PAVONE稱重變送器DAT500/Analog規格描述
Technical Specifications |
Measuring range: -0.5 ÷ +3.5 mV/V (-3.9 ÷+3.9 mV/V optional) |
Input sensitivity: 0.02 μV/count |
Full scale non-Linearity: <0.01% |
Gain drift: <0.001% FS/°C |
Display: 6 digit, red LED (7 segments), h 14 mm |
A/D Converter: 24 bit |
Internal Resolution: > 16.000.000 points |
Trasducer input voltage: 5 V (max 6 load cells 350 Ohm) |
Visible resolution (in divisions): 60000 |
Divisions value (adjustable): x1, x2, x5 |
Decimal figures range: 0 ÷ 3 |
Temperature range: -10 ÷ +50°C (max umidity 85% without condensation) |
Storage temperature: -20 ÷ +70 °C |
Filter: 0.1 ÷ 25 Hz |
Logic output: 2 Solid-state relays, (maximum load 24 Vdc / 100 mA each) |
Logic input: 2 optoisolated 24 V c.c. PNP (External voltage) |
Serial port: RS232C or RS422/RS485 with ASCII or Modbus RTU protocols |
Power supply: 24 V c.c. ±15% - power 5 W |
Regulatory compliance: EN61326-1, EN55011 and EN55014 for EMC; EN61010-1 for electrical security |
Baud rate: 2400, 9600, 19200, 38400, 115200 adjustable |
Transmission distance: 15m (RS232C), 1000m (RS422; RS485) |
Analog output: optoisolated 16 Bit Tension: 0÷5/10V (R min10 K Ohm) Current: 0/4÷20mA (R max 300 Ohm) |
Dimensions and weight: 96 x 48 x 120 mm (L x H x D); 250 g |
Bipolar optional output: ±10V |

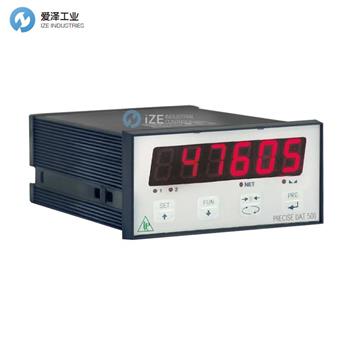

PAVONE稱重變送器DAT 500 Analog產品介紹
The DAT 500 Analog weight transmitter guarantees high performance and reliability. It own function of uploading and downloading for programming with TESTER 1008. The connection can be made through the external converter and the configuration and calibration can be set from the front panel or from PC with the Inovation ? program (MS WINDOWS). The weight transmitter DAT 500 Analog has a Peak Hold function for dynamic weighings and screw terminal blocks.
DAT 500 Analog重量變送器保證了高性能和可靠性。它具有上載和下載功能，以便使用TESTER 1008進行編程?？梢酝ㄟ^外部轉換器進行連接，并且可以通過前面板或使用Inovation程序（MS WINDOWS）從PC設置配置和校準。DAT 500 Analog重量變送器具有峰值保持功能，用于動態稱量和螺釘接線端子。
