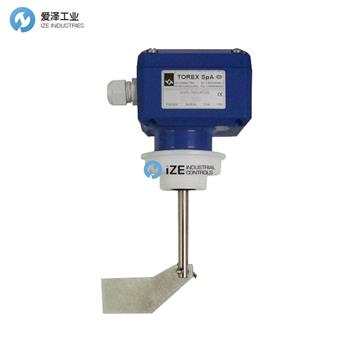

TOREX液位指示器ILT系列產品參數
MECHANICAL DATA | |
Enclosure: | IP 66 |
Process connection: | Thread GI 1/4", GI 1/2", G2 1/2" |
Material process connection: | Plastic and aluminium |
Material shaft and measuring vane: | stainless steel |
Friction clutch: | Protection of the gearing from impact of the measuring vane |
Pickup delay: | Approx. 1.3 sec |
Sensitivity: | adjustable via reset force of spring in three positions |
Speed of measuring vane: | 1 r.p.m. |
OPERATING CONDITIONS | |
Container excess pressure: | max. 0.8 bar |
ELECTRICAL DATA | |
Mains voltage: | 24/48V 50-60Hz or 115V / 23011, 50-60Hz or 24V DC (all voltages +10% / -15%) |
Installed load: | 3 VA (3W) |
Signal output: | Floating micro-switch |
Signal output: | Floating micro-switch (AC max.250V, 2 A, 500W - DC max. 3001.1, 2A, 60W ) |
Protection class: | I |
Temperature inside vessel: | -20℃ 80℃ (-20℃ / + 250℃ with high temperature version) |
Ambient temperature inside the casing: | -20℃ 70℃ |
TOREX液位指示器ILT系列產品介紹
ILT旋轉液位指示器設計用于通過旋轉槳來監控料倉，料斗或料倉的液位。
當物料水平到達測量板時，旋轉被阻止。電機自由懸掛在外殼內。
產生的反作用扭矩激活一個限位開關輸出信號，該信號使電動機停止運行。
一旦料位下降到槳葉半徑以下，彈簧就會將電動機拉回到其工作位置。
開關返回到OFF位置，并且電機接通。
頂部或側面安裝的指示器通常用于最小堆積密度為0.3 t / m3（每立方英寸0.01 lbs）的材料。
ILT Rotating Level indicators are designed for level monitoring of bins, hoppers or silos by means of the rotating paddle.
When the material level reaches the measuring paddle the rotation is blocked. The motor is freely suspended within the casing.
The resulting reaction torque activates a limit switch output signal that stops the motor.
As soon as the material level sinks below the paddle radius, a spring pulls the motor back into its operating position.
The switch returns to the OFF position and the motor is switched on.
The top or side-mounted indicators are commonly used for materials having a minimum bulk density of 0.3 t/m3 (0.01 lbs per cu in).

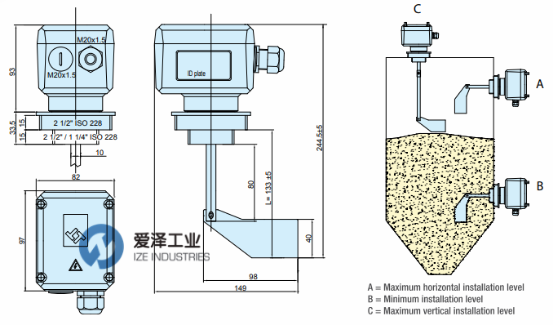

外觀尺寸
TOREX液位指示器ILT其他常見型號：
TOREX ILTC0
TOREX ILTD2
TOREX ILTC2
TOREX LEVEL SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TOREX液位指示器ILTC0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TOREX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
TOREX液位指示器ILTC0產品介紹及外觀尺寸
