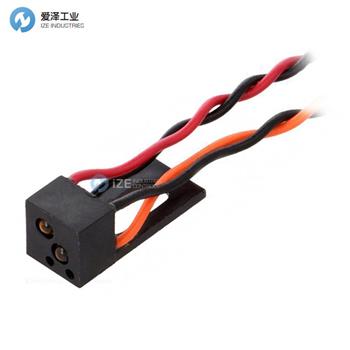

HONEYWELL傳感器HOA1180-002規格描述
Product Specifications | |
Product Type | IR Switch |
On-State Collector Current | 0.16 mA |
Output | Transistor |
Package Style | Side-Looking |
Package Components | Plastic |
Package Color | Black |
Forward Current | 30 mA |
Continuous Forward Current | 50 mA |
Forward Voltage | 1.6 V |
Reverse Breakdown Voltage | 3 V |
Reverse Current | 10 μA |
Housing Material | Polyester |
Rise and Fall Time | 15 μs |
Power Dissipation | 75 mW |
Operating Temperature Range | -55 °C to 100 °C [-67 °F to 212 °F] |
Dark Current | 100 nA |
Collector DC Current | 30 mA |
Collector-Emitter Breakdown Voltage | 30 V |
Emitter-Collector Breakdown Voltage | 5 V |
Collector-Emitter Saturation Voltage | 0.4 V |
Availability | Global |
Product Name | Reflective Sensor |
Optimum Point of Response | 6,35 mm [0.25 in] |
HONEYWELL傳感器HOA1180系列性能特點
FEATURES
Choice of phototransistor or photodarlingtonoutput
High sensitivity
Wide operating temperature range (-55?C to +100?C)
12.0 in.(305 mm) min. 28 AWG PVC insulated wire leads
DESCRIPTION
The HOA1180 series consists of an infrared emitting diode and an NPN silicon phototransistor (HOA1180-001, -002) or photodarlington (HOA1180-003), encased side-by-side on converging optical axes in a black thermoplastic housing. The detector responds to radiation from the IRED only when a reflective object passes within its field of view. The HOA1180 series employs metal can packaged omponents. For additional component information see SE1450, SD1440, and SD1410.
Housing material is polyester. Housings are soluble in chlorinated hydrocarbons and ketones. Recommended cleaning agents are methanol and isopropanol.
特征
選擇光電晶體管或光電達林頓輸出
高靈敏度
寬工作溫度范圍（-55℃至+ 100℃）
最小12.0英寸（305毫米） 28 AWG PVC絕緣電線
描述
HOA1180系列由一個紅外發射二極管和一個NPN硅光電晶體管（HOA1180-001，-002）或光達林頓（HOA1180-003）組成，并排封裝在會聚光軸上的黑色熱塑性塑料外殼中。僅當反射物體在其視場內通過時，探測器才對IRED的輻射做出響應。 HOA1180系列采用金屬罐包裝成分。 有關其他組件信息，請參見SE1450，SD1440和SD1410。
外殼材料是聚酯。 外殼可溶于氯代烴和酮。 推薦的清潔劑是甲醇和異丙醇。
HONEYWELL傳感器HOA1180系列其他型號：
HONEYWELL HOA1180-002
HONEYWELL HOA1180-001
HONEYWELL HOA1180-003
HONEYWELL sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL傳感器HOA1180-002的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
HONEYWELL傳感器HOA1180-002技術數據
