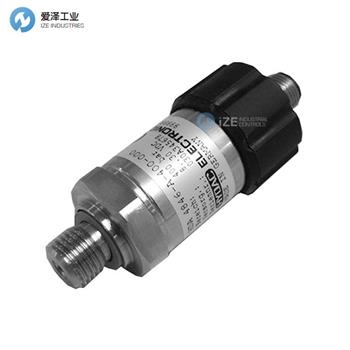

HYDAC壓力傳感器HDA4844-A-250-000規格描述

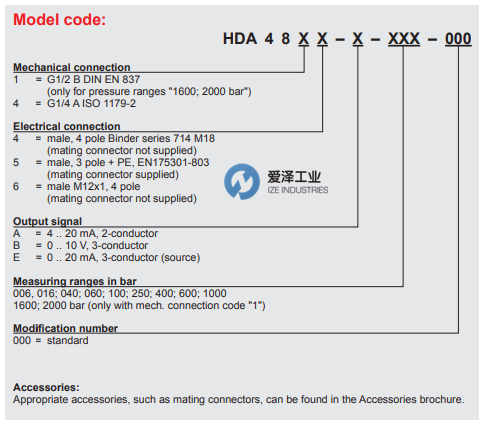

HDA 4800 |
4:G1/4 A ISO 1179-2 |
4:male, 4 pole Binder series 714 M18(mating connector not supplied) |
A: 4 .. 20 mA, 2-conductor |
250 |
000: standard |
HYDAC壓力傳感器HDA4800系列描述及選型
Available versions: Standard
The pressure transducer series HDA 4800 is equipped with a very precise and robust sensor cell with a thin-film DMS on a stainless steel diaphragm.
Because of the outstanding technical data and the robust design, the HDA 4800 is particularly suited for the area of testing facilities and diagnostics technology and can moreover be utilised in a wide range of applications in
the industrial sector.
Because of the fact that the accuracy of a pressure transducer varies greatly with the temperature of the measurement medium,
it is precisely here that the device offers outstanding properties.
The output signals 4 ... 20 mA, 0 ... 10V and 0 ... 20 mA (source) are available as standard.
Accuracy ≤ ±0.125% FS typ.
Very robust sensor cell
Very low temperature errors
Outstanding EMC characteristics
Excellent long-term stability
可用版本：標準
壓力傳感器HDA 4800系列配備了非常精確和堅固的傳感器單元，并在不銹鋼膜片上帶有薄膜DMS。
由于出色的技術數據和堅固的設計，HDA 4800特別適合于測試設施和診斷技術領域，并且可以在以下領域中廣泛應用：
工業部門。
由于壓力傳感器的精度隨測量介質的溫度而變化很大，
正是在這里，該設備具有出色的性能。
標準提供輸出信號4 ... 20 mA，0 ... 10V和0 ... 20 mA（源）。
精度≤±0.125％FS典型值
非常堅固的傳感器單元
極低的溫度誤差
杰出的EMC特性
出色的長期穩定性
HYDAC壓力傳感器HDA4800系列其他常用型號：
HYDAC HDA 4844-A-006-000
HYDAC HDA 4844-A-016-000
HYDAC HDA 4844-A-040-000
HYDAC HDA 4844-A-060-000
HYDAC HDA 4844-A-100-000
HYDAC HDA 4844-A-250-031(160bar)
HYDAC HDA 4844-A-400-000
HYDAC HDA 4844-A-400-031(300bar)
HYDAC HDA 4844-A-600-000
HYDAC HDA 4844-A-600-031(630bar)
HYDAC HDA 4844-A-600-031(700bar)
HYDAC HDA 4844-B-006-000
HYDAC HDA 4844-B-016-000
HYDAC HDA 4844-B-060-000
HYDAC HDA 4844-B-1000-031(750bar)
HYDAC HDA 4844-B-250-000
HYDAC HDA 4844-B-400-000
HYDAC HDA 4844-B-600-000
HYDAC HDA 4844-E-016-000
HYDAC HDA 4844-E-100-000
HYDAC HDA 4844-E-250-000
HYDAC HDA 4844-E-400-000
HYDAC Temperature Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC壓力傳感器HDA4844-A-250-000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
