SETRA壓力變送器268系列產品參數
Performance Data | |||
Parameter | Standard | Optional | Optional |
Accuracy RSS* (at constant temp.) | ±1.0%FS | ±0.4%FS | ±0.25%FS |
Non-Linearity (BFSL) | ±0.98%FS | ±0.33%FS | ±0.20%FS |
Hysteresis | ±0.20%FS | ±0.20%FS | ±0.20%FS |
Non-Repeatability | ±0.05%FS | ±0.05%FS | ±0.05%FS |
Thermal Effects**Compensated Range °F(°C) | +40 to +150 (+5 to +65) | ||
Zero/Span Shift %FS/℉ | ±0.033 (±0.06) | ||
Maximum Line Pressure | 10 PSI | ||
Overpressure | 10 PSI in Positive or Negative Direction | ||
Warm-up Shift | ±0.1% FS Total | ||
Physical Description | |||
Case | IP65 die-cast aluminum enclosure | ||
Electrical Connection | Screw Terminal Strip Inside of Case | ||
Electrical Termination | PG-9 | ||
Zero and Span Adjustment | Accessible Inside of Case | ||
Pressure Fittings | 3/16" O.D. Barbed Brass for 1/4" Push-On Tubing (Standard) | ||
Mounting | 2 Mounting Tabs with 0.18" Holes | ||
Weight (approx.) | 348 grams | ||
Pressure Media | Typically Air or Similar Non-Conducting Gases. | ||
Environmental Data Temperature | |||
Operating* °F (°C) | 0 to +150 (-18 to +65) | ||
Storage °F (°C) | -65 to +180 (-54 to +82) | ||
Electrical Data (Current) | |||
Circuit | 2-Wire | ||
Output* | 4 to 20 mA** | ||
Bidirectional Output at Zero | 12 mA | ||
External Load | 0 to 800 Ohms | ||
Minimum loop supply voltage | (VDC) = 9 + 0.02 x (Resistance of receiver plus line) | ||
Maximum loop supply voltage | (VDC) = 30 + 0.004 x (Resistance of receiver plus line) | ||
Re-Ranging (268MR only) | 4 Position Dip Switches (located inside cas | ||
Electrical Data (Voltage) | |||
Circuit | 3-wire (Exc, Com, Sig) | ||
Output* | 0 to 5VDC/0 to 10VDC** | ||
Excitation (for 0 to 5VDC output) | 9 to 30VAC/12 to 42VDC | ||
Excitation (for 0 to 10VDC output) | 11 to 30VAC/13 to 42VDC | ||
Bidirectional Output at Zero | 2.5VDC (0 to 5VDC)/5VDC (0 to 10VDC) | ||
Output Impedance | 100Ohms | ||

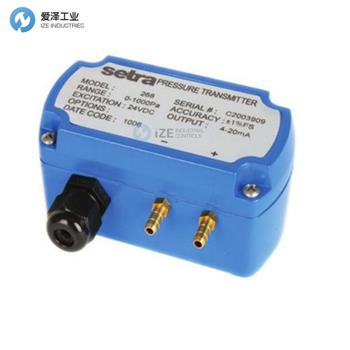

SETRA壓力變送器268系列產品介紹
Model 268 系列微差壓傳感器由不銹鋼膜片與固定電極構成一個可變電容，壓力變化時，電容值發生變化。Setra檢測電路將電容值的變化轉化為線性直流電信號。彈性膜片可承受 70KPa 過壓（正向 / 負向均可）而不會損壞。此傳感器 / 變送器已進行了溫度補償，從而提高了溫度性能和長期穩定性。
Model 268 或 268MR 微差壓變送器可用來測量差壓或表壓 ( 靜態 ), 并將信號轉換為成比例的電流信號，輸出 4-20mA 的電流信號。激勵電壓為 24VDC。Model 268(EX) 符合本質安全要求，防爆等級為 ia ll CT4( 特選 ), 可在防爆的環境下正常工作。Model268/268MR 最小測量范圍為 0 ～ 25Pa, 最大測量范圍為 0 ～ 25KPa, 在室溫下精度為 ±1%FS, 溫度補償范圍在 +5 ～ +65℃ , 通過溫度補償電路，使溫度影響小于 ±0.06%FS/℃。
Model 268/268MR以其性能價格比，廣泛應用于天然氣管道監測，電廠風壓檢測等領域。

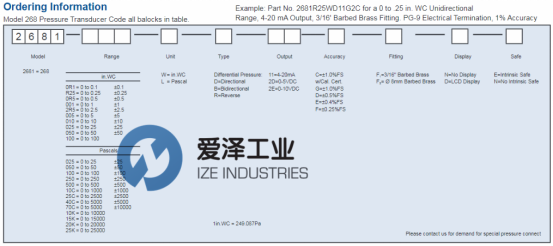

選型參考
SETRA壓力變送器268系列其他常見型號：
SETRA 268
SETRA 268Ex
SETRA 268MR
SETRA 268C2061056
SETRA Pressure Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SETRA壓力變送器268C2061056的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SETRA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
SETRA壓力變送器268C2061056產品參數
