SENMATIC熱電偶TB系列規格描述
Specification |

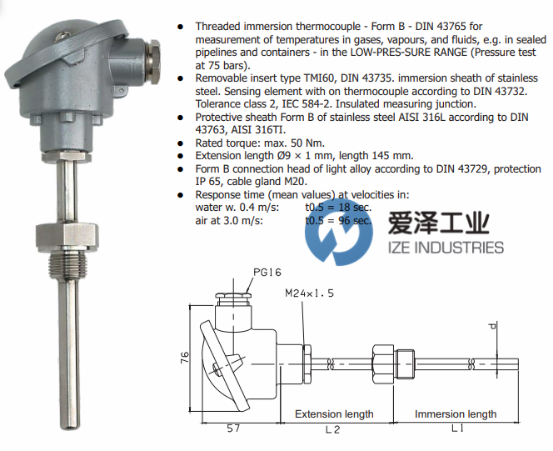

Threaded immersion thermocouple - Form B - DIN 43765 for measurement of temperatures in gases, vapours, and fluids, e.g. in sealed pipelines and containers - in the LOW-PRES-SURE RANGE (Pressure test at 75 bars). |
Removable insert type TMI60, DIN 43735. immersion sheath of stainless steel. Sensing element with on thermocouple according to DIN 43732. Tolerance class 2, IEC 584-2. Insulated measuring junction. |
Protective sheath Form B of stainless steel AISI 316TI according to DIN 43763, AISI 316TI. |
Rated torque: max. 50 Nm. |
Extension length ?9 × 1 mm, length 145 mm. |
Form B connection head of light alloy according to DIN 43729, protection IP 65, cable gland PG 16. |
Response time (mean values) at velocities in: water w. 0.4 m/s: t0.5 = 18 sec. air at 3.0 m/s: t0.5 = 96 sec. |
SENMATIC熱電偶TB系列產品簡介

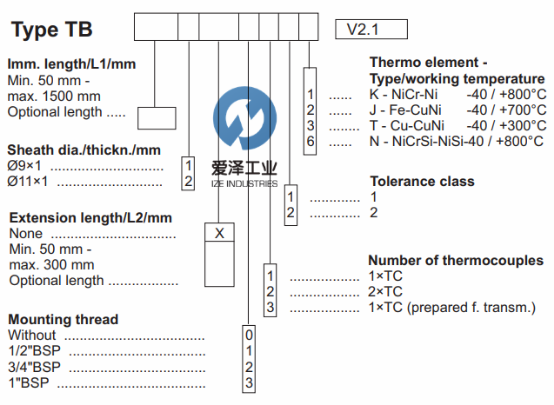

選型參考
SENMATIC熱電偶TB系列其他常用型號：
SENMATIC TB-600
SENMATIC TB-900
SENMATIC TB-600mm-10mm-150mm-3-2-2-1
SENMATIC TB-900mm-10mm-150mm-3-2-2-1
SENMATIC Thermocouple NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SENMATIC熱電偶TB-600的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SENMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SENMATIC熱電偶TB系列 TB-600mm-10mm-150mm-3-2-2-1產品參數
