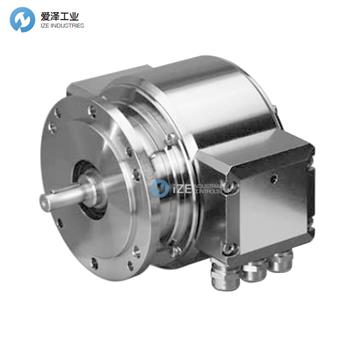

HUBNER編碼器AMG11P29Z0產品參數
Specification | |
Technical data - electrical ratings | |
Voltage supply | 9...30 VDC |
Consumption w/o load | ≤100 mA (per interface SSI) |
Initializing time | ≤200 ms after power on |
Interfaces | SSI, Profibus-DPV0,CANopen, DeviceNet, PROFINET |
Function | Multiturn |
Transmission rate | 9.6...12000 kBaud (Profibus) |
Profile conformity | Profibus-DPV0 |
Device adress | Rotary switches in bus cover |
Steps per turn | 8192 / 13 bit |
Number of turns | ≤65536 / 16 bit |
Additional outputs | Square-wave TTL (RS422) |
Sensing method | Optical |
Code | Gray (version SSI) |
Code sequence | CW default |
Emitted interference | EN 61000-6-3 |
Technical data - mechanical design | |
Size (flange) | ?115 mm |
Shaft type | ?11 mm solid shaft |
Flange | EURO flange B10 Protection DIN EN 60529 IP 67 |
Operating speed | ≤3500 rpm (mechanical) Operating torque typ. |
Materials | Housing: aluminium alloy Shaft: stainless steel |
Corrosion protection | IEC 60068-2-52 Salt mist |
Operating temperature | -20...+85 °C |
Resistance | IEC 60068-2-6 |
Explosion protection | II 3 G Ex nA IIC T4 Gc (gas) |
Weight approx. | 3 kg (depending on version) |
Connection | Bus cover |
HUBNER編碼器AMG11P29Z0產品介紹
–多圈SSI/Profibus/CANopen/DeviceNet/PROFINET
–光學傳感方法
–單圈13位，多圈12位/16位
–歐洲法蘭B10/實心軸？11 mm
–采用microGen技術的多匝感應，無需齒輪或電池
–提供冗余絕對信號
–特殊防腐保護
–Multiturn SSI / Profibus / CANopen / DeviceNet /PROFINET
–Optical sensing method
–Singleturn 13 bit, multiturn 12 bit / 16 bit
–EURO-flange B10 / solid shaft ?11 mm
–Multiturn sensing with microGen technologie, without gear or battery
–Available with redundant absolute signals
–Special protection against corrosion

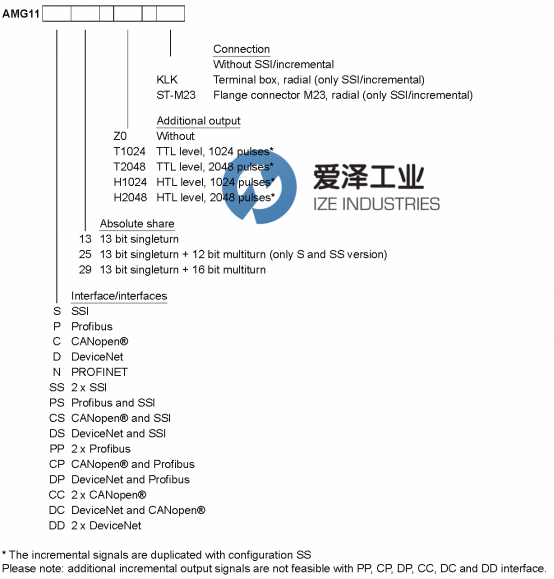

選型參考
HUBNER編碼器AMG11系列其他常見型號：
HUBNER AMG11S13T1024KLK
HUBNER AMG11S13T1024ST-M23
HUBNER AMG11P25T2048KLK
HUBNER AMG11C29H1024ST-M23
HUBNER AMG11D13H2048KLK
HUBNER AMG11SS13T1024ST-M23
HUBNER AMG11PS25T1024KLK
HUBNER AMG11CS29T2048ST-M23
HUBNER AMG11CP25H1024KLK
HUBNER AMG11CC29H2048ST-M23
HUBNER AMG11P29Z0
