HENGSTLER編碼器S21系列技術參數
General | |
Product Family | S21 |
Ordering Information | RotaryEncoderS21 |
Fuction / Application | Sinus |
Technology | Optical |
Approval | UL,CE |
Mechanical | |
Housing Diameter [mm] | 53 mm |
Solid- / Hollow Shaft | Hollow 8 ... 12,7 mm |
Protection Rating Housing | IP40 |
Operating Temperatur [°C] | -15 ... +120 °C |
Housing Option | Aluminium |
Connection | Cable |
Electrical | |
Revolutions [rpm] | 12,000 rpm |
Number of Pulses | 1024 ... 2048 |
Interface | SinCos 1Vss |
HENGSTLER編碼器S21系列產品介紹

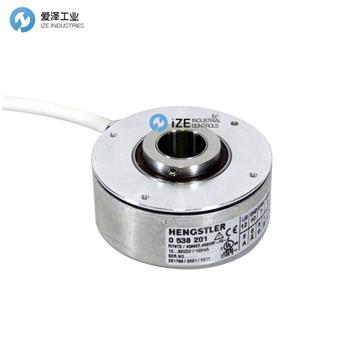

S21 Sinus
Broad range of working temperature, -15 to +120°C, Optimum exploitation of motor capacity
Unequalled bandwidth of 500 kHz at full signal quality, Peak speeds and reduction in unproductive downtime
Excellent immunity to interference (EN61000-4-4 severity 4)
High functional dependability through signal control and system monitoring (undervoltage ,contamination, Disc breakage, End of LED life-time)
High signal quality through control and error compensation
S21
工作溫度范圍廣，-15至+ 120°C，最佳利用電機容量
在完整的信號質量下，無與倫比的500 kHz帶寬，峰值速度和非生產性停機時間的減少
出色的抗干擾能力（EN61000-4-4嚴重等級4）
通過信號控制和系統監控實現高功能可靠性（欠壓，污染，光盤斷裂，LED壽命終止）
通過控制和誤差補償實現高信號質量
HENGSTLER編碼器S21系列其他型號：
HENGSTLER S21-2048.001/03C
HENGSTLER S21-2048.001
HENGSTLER S21-2048.003
HENGSTLER S21-2048.004
HENGSTLER S21-2048.005
