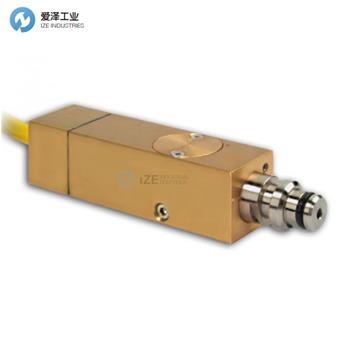

CTTEMAG壓力傳感器RCC-2產品參數
Specification | |
metrological | |
- pressure setting range | 0,1 ... 45 MPa |
-maximum pressure | 60 MPa |
- accuracy of threshold pressure setting | 0.01 |
-hysteresis | 5 ÷ 10% of the set threshold pressure |
electric | |
-acceptable input parameters | Uì = 30 V DC. Ii = 2A, Li = 7μH |
- exit signal | changeover contact with parameters: 2 A / 30 V AC / DC |
- connection strength of the connector | 5 × 10? cycles |
Working conditions | |
-working temperature | +5°C ... +60°C |
-medium | oil, oil-water emulsion |
mechanical | |
Dimensions | ?30 × 135 mm |
Time | about 0.5 kg |
Degree of housing protection | IP 65 |
Cable length | according to orders, max. 10 m |
Process connection | Stecko DN10, metric or inch thread,throttle assembly - additional |
CTTEMAG壓力傳感器RCC-2產品介紹
描述
具有可調節閾值RCC-2的壓力傳感器用于發出信號，指示超出機器和設備的介質供應液壓系統的壓力值。
特征
適應在地下礦山的艱苦開采條件下工作
超過機器液壓系統介質的設定壓力時發出信號
快速輕松地更改開關壓力設置
用戶可以校正和更改壓力設置
測量范圍0.1÷45 MPa
Description
The pressure sensor with adjustable threshold RCC-2 is intended for signaling the exceeding of the pressure value of the medium supplying hydraulic systems of machines and devices.
Features
adaptation to work in difficult exploitation conditions of underground mines
signaling when the set pressure of the medium of the machine's hydraulic systems is exceeded
quick and easy change of switching pressure settings
the user can make corrections and changes in pressure settings
measuring range 0.1 ÷ 45 MPa
