DRUCK壓力校驗儀DPI611系列技術參數
General specifications | |
Display | Size: 110 mm (4.3in) diagonal. 480 x 272 pixels. LCD colour display with touch screen |
Languages | English (default), Chinese, Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish |
Operating temperature | -10o to 50oC (14o to 122oF). 0o to 40oC (32o to 104oF) when powered from optional mains adaptor IO620-PSU |
Storage temperature | -20o to 70oC (-4o to 158oF) |
Ingress protection | IP 54. Protected against dust and splashing water from any direction |
Humidity | 0 to 90% RH none condensing. To Def Stan 66- 31, 8.6 cat III |
Shock / vibration | BS EN 61010-1:2010 / MIL-PRF-28800F CLASS 2 |
Altitude | Up to 2000m |
EMC | BS EN 61326-1:2013 |
Electrical safety | BS EN 61010-1:2010 |
Pressure safety | Pressure Equipment Directive - Class: Sound Engineering Practice (SEP) |
Enclosure materials | Polycarbonate, polyamide, polypropylene, acrylic, cotton |
Approved | CE marked |
Size (L:W:H) | 270 x 130 x 120mm (10.6 x 5.1 x 4.7 in) |
Weight | 1.96Kg (4.3lbs) including batteries |
Power supply | 8 x AA alkaline batteries Optional mains adaptor P/N IO620-PSU 100 – 260V +/- 10%, 50 / 60Hz AC, Output DC V=5A, 1.6A |
Battery life | 18 to 26 hours depending on functions |
Connectivity | USB type A, USB type mini B |
DRUCK壓力校驗儀DPI611系列介紹

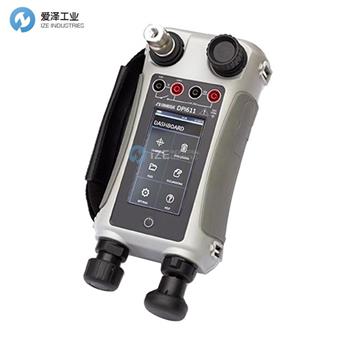

The DPI 611 is the fourth generation in the DPI 600 family, which was first introduced in 1984. The DPI 600 family revolutionized test and calibration by providing all the tools for pressure generation and signal measurement in self-contained portable packages.
Building on the technical legacy and more than three decades of experience in pressure measurement and calibration, the DPI 611 provides all the convenience and reliability of a true “Druck,” yet offers twice the performance in a product half the size.
? 50% smaller and 33% lighter than the DPI 610
? Generates 0 to 20 bar/300 psi in less than 30 seconds
? Creates 95% vacuum
? Pressure measurement is twice as accurate
? Three times better electrical accuracy
? Simplified touch screen interface with application DASHBOARD, quick TASK selection and FAVOURITES storage
? Fast, three touch set-up for any application
? Calculates PASS/FAIL errors, documents results and interfaces with calibration software
Precision engineering
Performance is a function of precision engineering.
The innovative design of the DPI 611 pressure system can only achieve efficient generation and precise control through the use of carefully selected materials with high tolerance machining and perfect finishes.
The choice of case material and precision moulding ensures that the DPI 611 is both rugged and weatherproof.
State-of-the-art analogue and digital microelectronics contribute both accuracy and processing power to provide a class leading pressure and electrical capability with a unique simple-to-use interface.
DPI 611是DPI 600系列的第四代產品，該產品于1984年首次推出。DPI600系列通過提供所有用于獨立式便攜式包裝中的壓力產生和信號測量的工具，徹底改變了測試和校準方法。
DPI 611以技術傳統為基礎，并在壓力測量和校準領域擁有超過三十年的經驗，DPI 611提供了真正的“ Druck”所具有的所有便利性和可靠性，但其性能卻是其尺寸的一半。
?比DPI 610縮小50％，重量減輕33％
?在不到30秒的時間內產生0至20 bar / 300 psi
?產生95％的真空
?壓力測量精度是原來的兩倍
?電氣精度提高三倍
?簡化的觸摸屏界面，帶有應用儀表板，快速任務選擇和收藏夾
?適用于任何應用的快速三點觸控設置
?計算通過/失敗錯誤，記錄結果并與校準軟件進行接口
精密工程
性能是精密工程的功能。
DPI 611壓力系統的創新設計只能通過使用經過精心挑選的具有高公差加工和完美光潔度的材料來實現高效發電和精確控制。
外殼材料和精密成型的選擇確保了DPI 611堅固耐用和防風雨。
最先進的模擬和數字微電子技術提供了準確性和處理能力，以獨特的易于使用的界面提供一流的壓力和電氣性能。
DRUCK壓力校驗儀DPI611系列其他型號：
DRUCK DPI611-05G
DRUCK DPI611-07G
DRUCK DPI611-10G
DRUCK DPI611-11G
DRUCK DPI611-13G
