ALICAT流量計MCR-100SLPM-D規格描述
Performance | MC & MCR Mass Flow Controller | |
Accuracy at calibration conditions after tare | ± (0.8% of Reading + 0.2% of Full Scale) | |
High Accuracy at calibration conditions after tare | ± (0.4% of Reading + 0.2% of Full Scale) | |
Repeatability | ± 0.2% Full Scale | |
Zero Shift and Span Shift | 0.02% Full Scale / oCelsius / Atm | |
Operating Range / Turndown Ratio | 0.5% to 100% Full Scale / 200:1 Turndown | |
Maximum Controllable Flow Rate | 100% Full Scale | |
Maximum Measurable Flow Rate | up to 128% Full Scale (Gas Dependent) | |
Typical Response Time | 100 ms (Adjustable) | |
Warm-up Time | < 1 Second | |
Operating Conditions | MC & MCR Mass Flow Controller | |
Mass Reference Conditions (STP) | 25oC & 14.696 psia (standard — others available on request) | |
Operating Temperature | ?10 to +60 oCelsius | |
Humidity Range (Non–Condensing) | 0 to 100% | |
Maximum Internal Pressure (Static) | 145 psig | |
Proof Pressure | 175 psig | |
Mounting Attitude Sensitivity | MC: None | MCR: Mount with valve cylinder vertical & upright |
Valve Type | Normally Closed | |
Ingress Protection | IP40 | |
Wetted Materials | MC: 303 & 302 Stainless Steel, Viton?, Heat Cured Silicone Rubber, Glass Reinforced Polyphenylene Sulfide, Heat Cured Epoxy, Aluminum, Gold, Brass, 430FR Stainless Steel, Silicon, Glass. | |
Communications / Power | MC & MCR Mass Flow Controller | |
Monochrome LCD or Color TFT Display with integrated touchpad | Simultaneously displays Mass Flow, Volumetric Flow, Pressure and Temperature | |
Digital Communications Options1 | RS-232 Serial / RS-485 Serial / Modbus RTU / PROFIBUS / EtherNet/IP / DeviceNet / Modbus TCP/IP / EtherCAT | |
Analog Signal2 Options | 0-5 Vdc / 1-5 Vdc / 0-10 Vdc / 4-20 mA | |
Optional Secondary Output Signal2 | 0-5 Vdc / 1-5 Vdc / 0-10 Vdc / 4-20 mA | |
Electrical Connection Options | 8-Pin Mini-DIN / 9-pin D-sub (DB9) / 15-pin D-sub (DB15) / 6-pin locking / 8-pin M12 | |
Supply Voltage | MC: 12 to 30 Vdc (15-30 Vdc for 4-20 mA outputs) | MCR: 24 to 30 Vdc |
Supply Current | MC: 0.250 Amp | MCR: 0.750 Amp (MCRH: 2.0 Amp) |
1. The Digital Output Signal communicates Mass Flow, Volumetric Flow, Pressure and Temperature | ||
Features | MC & MCR Mass Flow Controller | |
Gas Select? 5.0 | Gas Select? 5.0 provides 98 Preloaded Gas Calibrations: See the following page for a complete list. | |
COMPOSER? | COMPOSER? is a feature of Gas Select? 5.0 that allows users to defines up to 20 user gas compositions with up to 5 constituent gases per mix. | |

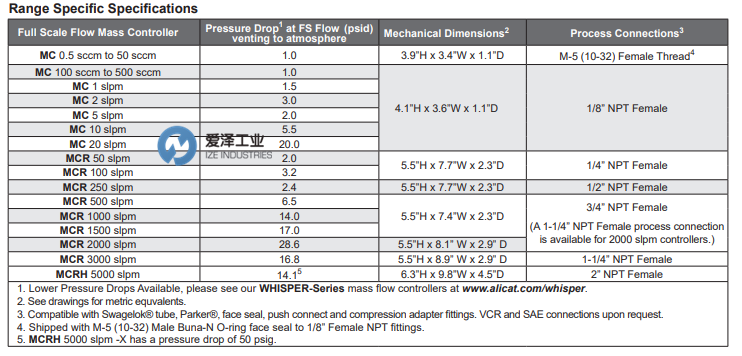

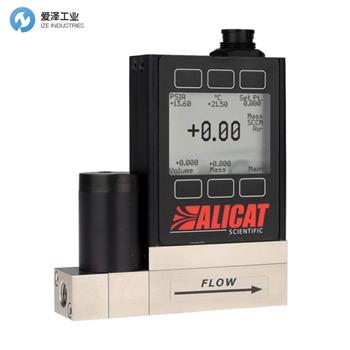

ALICAT流量計MCR系列描述
MC系列氣體質量流量控制器
響應式氣體流量控制，抑制壓力波動
性能極佳的質量流量控制器只需將流量保持在您的設定值。艾里卡特MC系列氣體質量流量控制器可快速達到新的設定值，并保持該設定值，即使在壓力突然增加的情況下，亦如此。根據應用參數定制閥門和PID調節功能，確保相關產品能快速實現穩定控制。
多功能。監控流速的同時控制壓力；可選擇另一臺已知路程氣體校準儀或者利用COMPOSER?氣體編輯器確定自己的氣體組成。
連接。利用以太網/IP、EtherCAT、DeviceNet、Profibus、Modbus（RTU和TCP/IP）或串行通訊選項，可輕松整合到數字工業網絡中。
耐用。MC系列氣體質量流量控制器可在不受損的情況下讓液體暫時流動。為保證對環境影響的耐受性，可為質量流量控制器構建IP66等級防護。
性能
可用量程：最大0-5000 slpm；最小0-0.5 sccm/0-500 sμlm（欲了解常備量程，參見零件編號標簽）
可調比：200:1（MC系列）或100:1（MCS系列）
標準精度（NIST可溯源）：±（0.8%讀數+0.2%滿量程）
高精度（選配，NIST可溯源）：±（0.4%讀數+0.2%滿量程）
可重復性：0.2%滿量程
標準質量流量控制器響應時間常數：50-100ms（若有PID調節功能，可縮短至25ms）
無需預熱時間
工作條件
兼容氣體：98（MC系列）或130（MCS系列）種預置可選氣體；利用COMPOSER氣體編輯器自定義的其它混合氣體
工作溫度：-10°C至+60°C
最大內部壓力（靜態）：145 psig（160 psia）
耐受壓力：175 psig（190 psia）

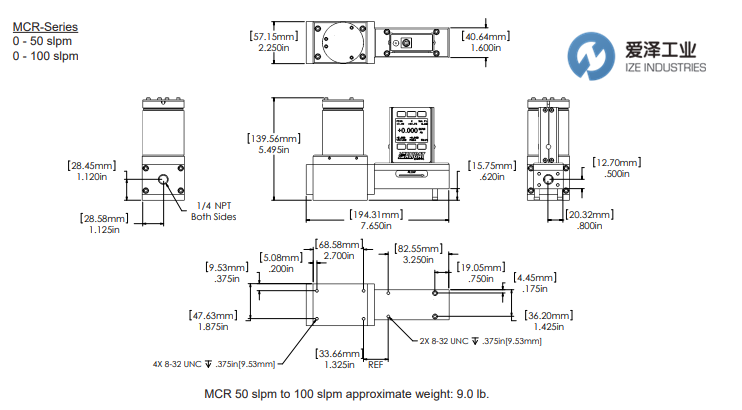

ALICAT流量計MCR系列尺寸圖
ALICAT流量計MCR系列其他常見型號：
ALICAT MCR-50SLPM-D
ALICAT MCR-100SLPM-D
ALICAT MCR-250SLPM-D
ALICAT MCR-500SLPM-D
ALICAT MCR-1000SLPM-D
ALICAT MCR-2000SLPM-D-PAR
ALICAT MCR-3000SLPM-D-PAR
ALICAT MCRH-5000SLPM-D-PAR
