HYDROTECHNIK傳感器PR140系列選型介紹

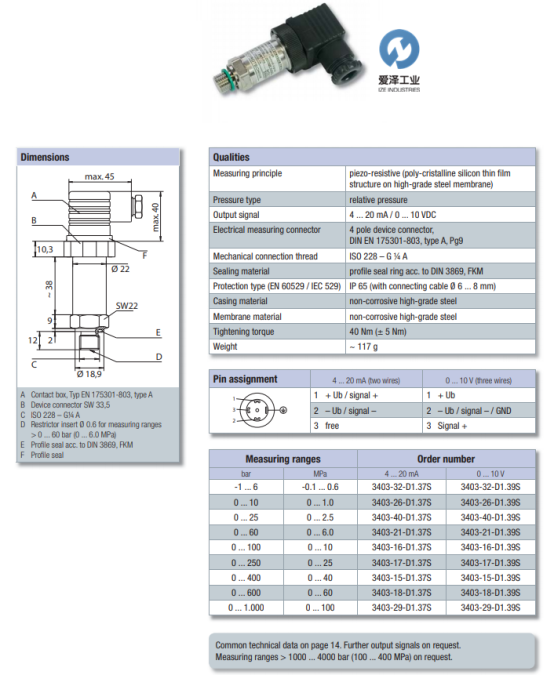

Technical data | PR 130 / PR 140 / PR 150 / PR 190 | HT-PDX-20 |
Overload range | 1.5 x nominal pressure | |
Burst pressure | 3 x nominal pressure | |
Signal type | Two wire analog (4 ... 20 mA), three wire analog (0 ... 10 VDC) | |
Supply voltage Ub | ||
... at 4 ... 20 mA | 10 ... 30 VDC | 30 V |
... at 0 ... 10 VDC | 12 ... 32 VDC | – |
Current consumption | 6.5 mA | 50 mA |
Overvoltage protection | 32 VDC | |
Error limit (of ?nal value) | comprises the in?uences non-linearity, hysterese, repeatability, zero-point- and span error | |
... at +22 °C (room temperature) | ± 0.5 % | |
... at -15 ... +85°C | < ± 1.0 % | |
... at +85 ... +100°C | < ± 2.5 % | |
... at -40 ... -15°C | < ± 2.5 % | |
Temperature error (-20 ... +80 °C) | < ± 0,03 %/°C | |
Compensation temperature range | -40 ... +100 °C | |
Non-linearity | < ± 0.4 % of ?nal value | |
Reproducability | < ± 0.1 % of ?nal value | |
Hysterese | < ± 0.1 % of ?nal value | |
Long-term stability | < ± 0.1 % of ?nal value/year | |
Response time | < = 1 ms (10 ... 90 %) | |
Frequency range | < = 1 kHz | |
Isolation resistance | min. 100 MOhm | |
Total resistance | RG= (Ub -10 V) / 20 mA (at output signal 4 ... 20 mA) | |
Load resistance | RL = > 5 kOhm (at output signal 0 ... 10 VDC) | |
Number of load cycles | > 10 x 106 | |
Medium temperature | -40 ... +125 °C | |
Environmental temperature | -40 ... +105 °C (short term +125°C) | -40 ... +85 °C |
Storage temperature | -40 ... +125 °C | |
EMV test | EN 50081-2, EN 50082-2 | |
Vibrational stability | 5 mm 10 ... 32 Hz, 20 g 32 ... 500 Hz, DIN EN 60068-2-6 | |
Shock stability | 50 g (11 ms half-sine) | |
Mounting orientation | arbitrary | |
HYDROTECHNIK傳感器PR140系列產品介紹

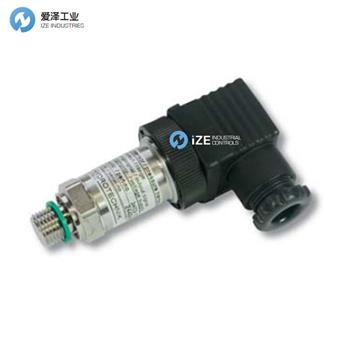

The HySense? PR 140 with its high-grade steel membrane, is a pressure sensor for mobile applications. It is available in several pressure ranges from -1 to 1,000 bar. The HySense? PR 140 has a protection type of IP 65. As an electrical measuring connector, it has a 4 pole device connector.
HySense PR 140及其高級鋼膜是用于移動應用的壓力傳感器。它的可用壓力范圍為-1至1,000 bar。 HySense PR 140的防護等級為IP65。作為電氣測量連接器，它具有4極設備連接器。
HYDROTECHNIK傳感器PR140系列其他常用型號：
HYDROTECHNIK 3403-32-D1.37S
HYDROTECHNIK 3403-32-D1.39S
HYDROTECHNIK 3403-26-D1.37S
HYDROTECHNIK 3403-26-D1.39S
HYDROTECHNIK 3403-40-D1.37S
HYDROTECHNIK 3403-40-D1.39S
HYDROTECHNIK 3403-21-D1.37S
HYDROTECHNIK 3403-21-D1.39S
HYDROTECHNIK 3403-16-D1.37S
HYDROTECHNIK 3403-16-D1.39S
HYDROTECHNIK 3403-17-D1.37S
HYDROTECHNIK 3403-17-D1.39S
HYDROTECHNIK 3403-15-D1.37S
HYDROTECHNIK 3403-15-D1.39S
HYDROTECHNIK 3403-18-D1.37S
HYDROTECHNIK 3403-18-D1.39S
HYDROTECHNIK 3403-29-D1.37S
HYDROTECHNIK 3403-29-D1.39S
HYDRITECHNIK Connector NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業(yè)成立于2010年，定位于向先進制造工業(yè)提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優(yōu)化客戶的工作效率，提高可靠性和安全性，致力于成為工業(yè)產品和解決方案的首選渠道。
如果有任何關于HYDROTECHNIK傳感器3403-17-D1.37S的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SIRIO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
HYDROTECHNIK傳感器3403-17-D1.37S產品介紹及特性
