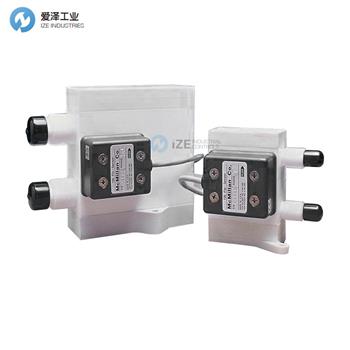

MCMILLAN流量傳感器106F系列
型號106F
McMillan 106F型FLO傳感器能夠測量從15 mL /分鐘到50.0 L /分鐘的極低液體流速，滿刻度精度為±1.0％或更高！
可以測量各種各樣的流體。使用獲得專利的Pelton型微型渦輪機葉輪可獲得可重復的結果。自1988年以來，這種經過驗證的設計就一直提供精確的結果，并且在連續運行服務無故障的多年中贏得了應有的聲譽。
由于這些產品的緊湊尺寸和經濟成本，因此Model 106F FLO-SENSORS適用于各種工業，商業，實驗室和OEM應用。一些示例應用包括對烴類流體，燃料，輕油，溶劑，冷卻劑，農藥，弱酸，堿和去離子水的測量。
提供幾種電源和輸出配置，包括脈沖和模擬輸出。NIST可追溯證書可用。
集成式火炬配件是標準配置。請驗證工業應用中火炬管接頭的連接性。
106F功能和選件
準確性/線性
模擬輸出模型的精度指標為滿量程的±1.0％（包括線性度）。脈沖輸出模型的精度指標為滿量程的±3.0％（包括線性度）。
校準
所有設備均在出廠時使用去離子水進行了校準。對于粘度不同于水的流體，可能需要校準曲線。
顯示
McMillan具有與FLO-SENSORS一起使用的廣泛的遠程顯示器。請?jiān)诰€查看顯示內容，或要求工廠提供更多信息。
電氣連接
所有單元均配有一條集成有PVC護套的電纜，并尾纖引線端接。這條4線電纜包括電源和信號連接。電纜長度在部件號中指定。流量范圍從15-100 mL /分鐘到5-50 L /分鐘不等。有關定制要求，請咨詢工廠。
流體連接
所有單元均具有與Flaretek兼容的外螺紋火炬接頭。
功率
可以指定設備以12 VDC或24 VDC電源運行。各種電源適配器可用于12 VDC版本。
信號輸出
可以將單元配置為脈沖輸出或模擬輸出。模擬輸出選擇包括4-20 mA，0-5 VDC和0-10 VDC。
超高壓應用
如果要測量高純度流體的流速，請考慮使用U701型或U702型。
濕材料
所有單元都只有PTFE，全氟彈性體和藍寶石接液部件。
型號106S
McMillan 106S型FLO傳感器能夠測量從15 mL /分鐘到50 L /分鐘的極低液體流速，滿刻度精度為±1.0％或更高！
可以測量各種各樣的流體。使用獲得專利的Pelton型微型渦輪機葉輪可獲得可重復的結果。自1988年以來，這種經過驗證的設計就一直提供精確的結果，并且在連續運行服務無故障的多年中贏得了應有的聲譽。
由于這些產品的緊湊尺寸和經濟成本，因此Model 106S FLO-SENSORS適合各種工業，商業，實驗室和OEM應用。一些示例應用包括對烴類流體，燃料，輕油，溶劑，冷卻劑，農藥，弱酸，堿和去離子水的測量。
提供幾種電源和輸出配置，包括脈沖和模擬輸出。NIST可追溯證書可用。
集成式火炬配件是標準配置。請驗證工業應用中火炬管接頭的連接性。
Model 106F
McMillan Model 106F FLO-SENSORS are capable of measuring extremely low liquid flow rates from 15 mL/minute up to 50.0 L/minute with a full scale accuracy of ±1.0% or better!
A wide variety of fluids may be measured. Repeatable results are achieved using a patented Pelton-type microturbine wheel. This proven design has been providing precision results since 1988 and has developed a well-deserved reputation for continuous operational service for many years without failure.
Because of the compact size and economical cost of these products, the Model 106F FLO-SENSORS are suitable for a wide variety of industrial, commercial, laboratory and O.E.M. applications. Some sample applications include measurement of hydrocarbon fluids, fuels, light oils, solvents, coolant, pesticides, mild acids, alkalis, and deionized water.
Several power and output configurations are available,including both pulse and analog outputs. NIST Traceable certificates are available.
Integrated flare fittings are standard. Please verify connectivity with flare fittings in industrial applications.
106F Features & Options
ACCURACY/LINEARITY
Analog output models have an accuracy specification of ±1.0% full scale (including linearity). Pulse output models have an accuracy specification of ±3.0% full scale (including linearity).
CALIBRATION
All units are calibrated at the factory using deionized water. Calibration curves may be requested for fluids with viscosities differing from water.
DISPLAYS
McMillan has a comprehensive range of remote displays for use with FLO-SENSORS. Please review displays available online or request further information from the factory.
ELECTRICAL CONNECTIONS
All units have an integrated PVC-jacketed cable terminated with pigtail leads. This 4-wire cable includes both power and signal connections. Cable length is specified in the part number. FLOW RANGES Flow ranges from 15-100 mL/minute up to 5-50 L/minute are available. Consult the factory for custom requirements.
FLUID CONNECTIONS
All units have integrated Flaretek-compatible male flare fittings.
POWER
Units may be specified to operate with either 12 VDC or 24 VDC power. Various power adapters are available for use with 12 VDC versions.
SIGNAL OUTPUTS
Units may be configured for either pulse output or analog output. Analog output choices include 4-20 mA, 0-5 VDC, and 0-10 VDC.
UHP APPLICATIONS
If you wish to measure the flow rate of a high purity fluid, consider the Model U701 or Model U702 instead.
WETTED MATERIALS
All units have only PTFE, perfluoroelastomers, and sapphire wetted parts.
Model 106S
McMillan Model 106S FLO-SENSORS are capable of measuring extremely low liquid flow rates from 15 mL/minute up to 50 L/minute with a full scale accuracy of ±1.0% or better!
A wide variety of fluids may be measured. Repeatable results are achieved using a patented Pelton-type microturbine wheel. This proven design has been providing precision results since 1988 and has developed a well-deserved reputation for continuous operational service for many years without failure.
Because of the compact size and economical cost of these products, the Model 106S FLO-SENSORS are suitable for a wide variety of industrial, commercial, laboratory and O.E.M. applications. Some sample applications include measurement of hydrocarbon fluids, fuels, light oils, solvents, coolant, pesticides, mild acids, alkalis, and deionized water.
Several power and output configurations are available,including both pulse and analog outputs. NIST Traceable certificates are available.
Integrated flare fittings are standard. Please verify connectivity with flare fittings in industrial applications.
