FOXBORO電磁流量計2800系列產品參數
Specifications | |
Enclosure | The housing is cast from low-copper aluminum alloy and silicone rubber sealant is used in all joints.The overall construction meets the dusttight and weatherproof rating of IP65 as defined by IEC 60529, and provides the environmental and corrosion resistant protection rating of NEMA 4X. |
Enclosure Finish | High-build epoxy paint. |
Electrical Connections | The housing has three 3/4 NPT tapped holes. Two for power conduit fittings and one for signal conduit fitting. See “OPTIONAL SELECTIONS AND ACCESSORIES” section for cable glands offered for nonconduit applications, or a signal cable seal for conduit applications. |
End Connection | ANSI Class 150 and 300 raised face flanges, and Metric PN 10, PN 16, PN 25, and PN 40 raised face flanges, as specified. Refer to Figure 1 and Figure 2 for process pressure and temperature limits with each flange type and line size. |
Mounting Position | The flowtube can be mounted in any orientation provided it remains full of process liquid and the electrodes are in a horizontal plane. |
Data Plate | Stainless steel data plate fastened to instruments with drive screws. Includes space for customer tag data up to a maximum of 60 characters and spaces. |
Metering Tube | 300 Series stainless steel with PTFE or polyurethane lining, as specified. |
Electrode Materials | 316L ss for both PTFE and polyurethane. Other electrodes available for flowtubes with PTFE lining are Hastelloy C, tantalum-tungsten, titanium, or platinum-10% iridium. |
Flat Head and Conical Head Electrodes | Standard flat head electrodes are offered with all electrode materials. The conical head electrode is offered when fluids can cause coatings to deposit on the electrode surface, possibly degrading measurement accuracy. Conical head electrodes are available in 316L ss or Hastelloy C materials for 25 through 300 mm (1 through 12 in) flowtube sizes. |
FOXBORO電磁流量計2800系列產品介紹
Foxboro 2800系列磁流管與使用eX脈沖線圈勵磁的IMT96型MagEXPERT智能磁流變送器、使用交流線圈勵磁的E96型磁流變送器和使用脈沖直流線圈勵磁的IMT2 5型磁流變送器一起使用。他們測量幾乎所有導電液體的體積流量。對于尺寸為14至36的2800系列流量管，見PSS 1-6B5 E。對于尺寸為1/2至3的2800系列衛生流量管，見PSS 1-6B5 C。

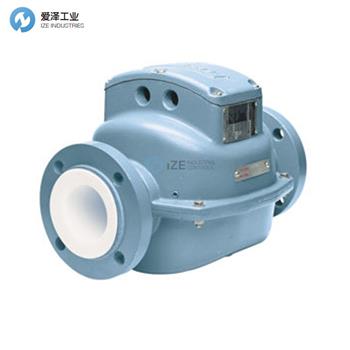

The Foxboro? brand 2800 Series Magnetic Flowtubes are used with Model IMT96 MagEXPERT Intelligent Magnetic Flow Transmitters using eX-Pulse coil excitation, Model E96 Magnetic Flow Transmitters using ac coil excitation, and Model IMT25 Magnetic Flow Transmitters using pulsed dc coil excitation. They measure the volumetric flow rate of virtually any conductive liquid. For 2800 Series flowtubes in 14 through 36 in sizes, see PSS 1-6B5 E. For 2800 Series Sanitary Flowtubes in 1/2 through 3 in sizes, see PSS 1-6B5 C.
FOXBORO電磁流量計2800系列其他常見系列：
FOXBORO 2802
FOXBORO 2812
FOXBORO 2804
FOXBORO 2806
FOXBORO 2808
FOXBORO 2803
FOXBORO 2804
FOXBORO Flanged Magnetic Flowtubes NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FOXBORO電磁流量計2803-SABA-TSA-G的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FOXBORO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
FOXBORO電磁流量計2803-SABA-TSA-G產品參數
