GEMS傳感器202575產品參數
Specifications | |
Primary brand | Gems |
Main function | Sensor (Flow) |
Product series / family name | FS-927 |
Pressure | 69bar |
Temperature | -29°C...+93.3°C / -20°F...+200°F (process flow) |
Connection type | 1/4" NPT fluid / process connection |
Length | 24" cable |
Digital outputs | 1 x digital output (SPST-NO contact; 20VA rating) |
Functions | Straight-through flow path sensor / switch |
Compliant with standard(s) | CE |
Connection type | bare end flying leads |
Cross-section | 18AWG wire |
Measurement accuracy | +/-15% set point |
GEMS傳感器202575產品介紹
直通流道傳感器/開關-Gems（FS-927）-額定69bar/1000psiG-額定-29°C…+93.3°C/-20°F…+200°F（工藝流程）-1/4“NPT流體/工藝連接-導線電氣連接-帶裸端飛線的預接線（24”長）-1 x數字輸出（SPST-無觸點）；20VA額定值）-活塞測量

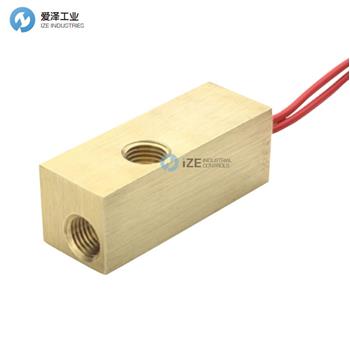

Straight-through flow path sensor / switch - Gems (FS-927) - Rated for 69bar / 1000psiG - Rated for -29°C...+93.3°C / -20°F...+200°F (process flow) - 1/4" NPT fluid / process connection - Lead wires electrical connection - Pre-wired (24" length) with bare end flying leads - 1 x digital output (SPST-NO contact; 20VA rating) - Measurement by piston
