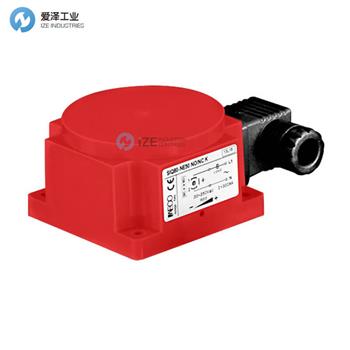

AECO傳感器SIQ80-CE50 NPN NO+NC K產品參數
Specification | |
Switching distance Sn mm | 10 ÷ 60 (sensitivity adjustable) |
Continuous voltage (residual ripple ￡10%) V | 10 ÷ 55 |
Alternating voltage 50÷60 Hz V | |
Hysteresis (%Sn) mm | <10% (Sn = 50 mm) |
Switching frequency Hz | 50 |
Repeatability % of Sn | ￡ 3 |
Max output current mA | 200 |
Min output current mA | |
Max peak current for 20 mS A | |
Absorption at 24Vdc mA | <10 |
Residual current mA | |
Voltage drop (sensor ON) V | <1.8 |
Short circuit protection | Incorporated |
Led | Incorporated |
Temperature limits °C | - 25 / + 70 |
Degree of protection IP | 65 |
Housing | Red plastic |
Cable PVC 2m | |
Connector plug | K (type 12) |
AECO傳感器SIQ80-CE50 NPN NO+NC K產品介紹
該傳感器配有微調器，用于靈敏度調整。當微調器順時針旋轉時靈敏度增加，逆時針旋轉時靈敏度降低。避免使用厚度為1 mm、邊長等于100 mm的方形（FE 37）鋼，其容量大于60 mm。當設置傳感器時，應考慮附近所有其他金屬物體，事實上，當傳感器安裝在正常工作條件下時，建議進行設置。傳感器已預設為50毫米靈敏度。
This sensor is supplied with a trimmer for the sensitivity adjustment. The sensitivity increases when the trimmer is rotated in the clockwise direction and decreases in the anti- clockwise direction. Avoid using for a capacity greater than 60 mm referred to a square piece of (FE 37) steel of 1 mm thickness the side of which is equal to 100 mm. When set- ting the sensor keep in consideration all other metallic objects nearby, in fact setting is suggested to be made when the sensor is installed in the normal working conditions. The sensor is supplied already preset to 50 mm sensitivity.
AECO傳感器SIQ80系列其他常見型號：
AECO SIQ80-CE50 NPN NO+NC
AECO SIQ80-CE50 PNP NO+NC
AECO SIQ80-CE50 NPN NO+NC K
AECO SIQ80-CE50 PNP NO+NC K
AECO SIQ80-BE50 NO
AECO SIQ80-BE50 NC
AECO SIQ80-BE50 NO/NC K
AECO SIQ80-AE50 NO
AECO SIQ80-AE50 NC
AECO SIQ80-AE50 NO/NC K
AECO RECTANGULAR INDUCTIVE SENSORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AECO傳感器SIQ80-CE50 NPN NO+NC K的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AECO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
