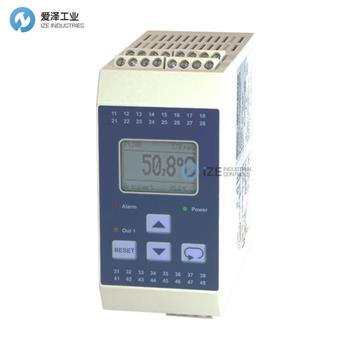

MARTENS溫控器STL50-1-1R-5-00技術參數
Power supply | |
Supply voltage | 230 V AC ±10 % |
Power consumption | < 4 VA |
CE-conformity | EN 61326-1: 2013 |
Ambient conditions | |
Operating temperature | -10..+55 °C |
Storage temperature | -30..+60 °C |
Relative humidity | < 95 % |
Condensation | not permitted |
Vibrations | operation only in vibration less ambient |
Thermocouple | |
Typ J | Fe-CuNi , -100,0..+800,0 °C |
Typ K | NiCr-Ni,-150..+1200 °C |
Typ N | NiCrSi-NiSi, -150..+1200 °C |
Typ S | Pt10Rh-Pt, 0..+1600 °C |
Accuracy | <0,5 %, ±2 Digit |
Temperature coefficient | 0,01 %/K |
Display | graphic-LCD-display 28 x 64 Pixel,with white LCD-backlight |
Outputs | |
Main relays | SPDT |
Pre-alarm relays | SPDT <250 V AC <500 VA <2 A ohmic load;<30 VDC <60 W <2 A |
Analogue output | 0/4 … 20mA burden ≤500?; 0/2 … 10V burden > 500?, galvanically isolated Output automatically changing (burdendependend) |
Accuracy(analogue output) | 0,4 %; TK: 0,01% /K |
Case | Polyamide (PA) 6.6 , UL94V-0,TS35 according to DIN EN 60715 |
Weight | approx. 450 g |
Connection | screw terminals 0,14..2,5 mm2 (AWG 26 .. 14) |
Protection class | IP20, DIN EN 60529, BGV A3 |
MARTENS溫控器STL50-1-1R-5-00產品參數介紹
STL50安全溫度限制器用于必須監視熱過程的地方，并且在發生故障時必須將系統轉移到安全的運行狀態。 如果達到允許的溫度極限值，或者在監視設備的允許的溫度范圍內發生故障（傳感器開路，傳感器短路，設備中的組件故障，軟件故障，故障或不可接受的值）（例如電源電壓等），STL50會立即關閉。
警報觸點已激活，前面板上的LED ALARM（警報）和顯示屏的背光燈亮起，并且錯誤原因在顯示屏上以純文本表示。 另外，端子16-17上存在24 V DC信號，用于外部警報信號。 或者，可以使用外部觸點重置設備。 此外，STL50還可以選擇具有可編程的模擬輸出，該輸出具有放大或縮小功能，以及一個預觸點。
The STL50 safety temperature limiter is used where ever thermal processes must be monitored and the system must be transferred into a safe operational state in case of fault. If the permissible temperature limit value is reached, or if a fault occurs within the permissible temperature range on the monitoring equipment (sensor open, sensor short-circuit, failure of a component part in the device, fault in the software, failure or inadmissible value of the supply voltage etc.), the STL50 switches off without delay.
The alarm contact is activated, the LED ALARM on the front panel and the back-lighting of the display light up, and the error cause is indicated as plain text on the display. In addition, there is a 24 V DC signal present on the terminals 16-17 for an external alarm signal. Alternatively, the device can be reset using an external contact. In addition, the STL50 optionally has an programmable analog output with up or downscaling function, as well as a precontact.

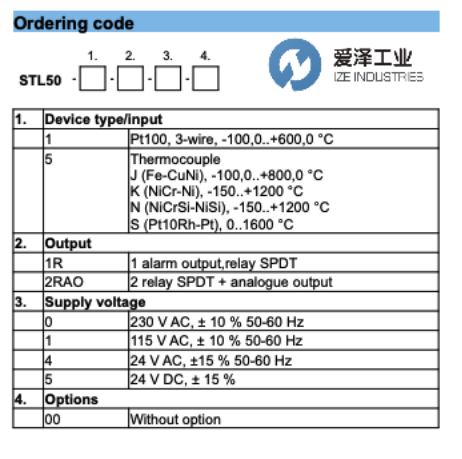

MARTENS溫控器STL50系列選型
MARTENS溫控器STL50系列其他型號：
MARTENS STL50-1-1R-0-00
MARTENS STL50-5-1R-0-00
