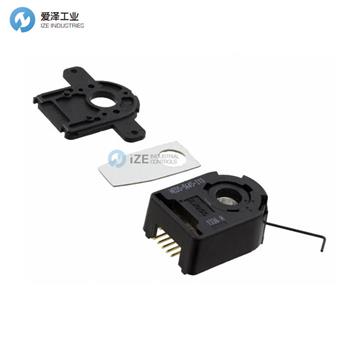

BROADCOM編碼器HEDS-5645-H14產品參數
Specification | |
Product Attribute | Attribute Value |
Series | HEDS-5500/5600 |
Mounting Style | Screw Mount |
Product | Kits |
Type | Incremental |
Resolution | 400 PPR |
Number of Channels | 3 Channel |
Output Type | Quadrature with Index |
Operating Supply Voltage | 5 VDC |
Packaging | Tray |
Brand | Broadcom / Avago |
Maximum Operating Temperature | + 100 C |
Minimum Operating Temperature | - 40 C |
Product Type | Encoders |
Factory Pack Quantity | 50 |
Subcategory | Encoders |
Unit Weight | 0.675496 oz |
BROADCOM編碼器HEDS-5645-H14產品介紹
HEDS-5500/5540、HEDS-5600/5540 和 HEDM-5500/5600 為高性能低成本的二通道和三通道光學增量型編碼器，這些編碼器強調高可靠性、高分辨率，并且容易組裝。
每個編碼器包含帶透鏡 LED 光源、具備檢測器和輸出電路的集成電路，以及在發射器和檢測器間旋轉的碼盤，HEDS-5500/5600 和 HEDM-5500/5600 輸出為兩個正交方波，HEDS-5540 和 5640 在兩個正交通道外還提供第三個索引通道輸出，索引輸出為 90 電子度，為由碼盤每旋轉一圈產生的高電平作動索引脈沖。
HEDS 系列采用金屬碼盤，HEDM 系列則使用塑膠碼盤達到 1,024CPR 的分辨率。HEDM 系列未提供三通道索引輸出。
這些編碼器可以快速簡單地安裝到電動機上，對于較大軸徑的電動機，HEDM-5600 和 HEDS-5600/5640 提供有外部安裝耳座。
正交信號和索引脈沖可以通過 0.1 英寸中心分隔的五個 0.025 英寸方型引腳連接。
特征
二通道正交輸出和選用的索引脈沖
組裝快速容易
不需信號調整
提供外部安裝耳座
低成本
分辨率可達 1,024CPR
小型化尺寸
-40°C 到 100°C 工作溫度范圍
TTL 電平兼容
單一 5V 電源
The HEDS-5500/5540, HEDS-5600/5640, and HEDM-5500/5600 are high performance, low cost, two and three channel optical incremental encoders. These encoders emphasize high reliability, high resolution, and easy assembly.
Each encoder contains a lensed LED source, an integrated circuit with detectors and output circuitry, and a codewheel which rotates between the emitter and detector IC. The outputs of the HEDS-5500/5600 and HEDM-5500/ 5600 are two square waves in quadrature. The HEDS-5540 and 5640 also have a third channel index output in addition to the two channel quadrature. This index output is a 90 electrical degree, high true index pulse which is generated once for each full rotation of the codewheel.
The HEDS series utilizes metal codewheels, while the HEDM series utilizes a film codewheel allowing for resolutions to 1024 CPR. The HEDM series is nont available with a third channel index.
These encoders may be quickly and easily mounted to a motor. For larger diameter motors, the HEDM-5600, and HEDS-5600/5640 feature external mounting ears.
The quadrature signals and the index pulse are accessed through five 0.025 inch square pins located on 0.1 inch centers.
Standard resolutions between 96 and 1024 counts per revolution are presently available. Consult local Agilent Technologies sales representatives for other resolutions.
Features
Two Channel Quadrature Output with Optional Index Pulse
Quick and Easy Assembly
No Signal Adjustment Required
External Mounting Ears Available
Low Cost
Resolutions Up to 1024 Counts Per Revolution
Small Size
-40 degrees C to 100 degrees C Operating Temperature
TTL Compatible
Single 5 V Supply
BROADCOM編碼器HEDS系列其他常見型號：
BROADCOM HEDS-5645-H14
BROADCOM HEDM-5500
BROADCOM HEDM-5505
BROADCOM HEDM-5540
BROADCOM HEDM-5545
BROADCOM HEDM-5600
BROADCOM HEDM-5605
BROADCOM HEDM-5640
