SETRA壓力傳感器266系列產品參數

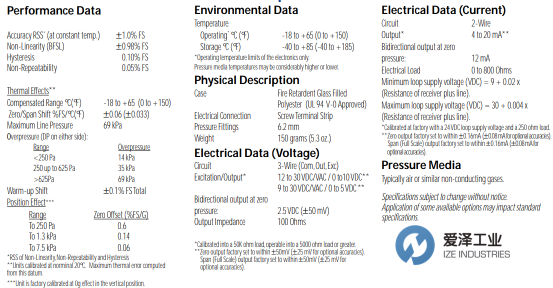

Specification | ||
Accuracy RSS*(at constant temp.) | ±1.0% FS | |
Non-Linearity (BFSL) | ±0.98% FS | |
Hysteresis | 0.10% FS | |
Non-Repeatability | 0.05% FS | |
Compensated Range °C(°F) | -18 to +65 (0 to +150) | |
Zero/Span Shift %FS/°C(°F) | ±0.06 (±0.033) | |
Maximum Line Pressure | 69 kPa | |
Overpressure (DP on either side) | Range <250 Pa 250 up to 625 Pa >625Pa | Overpressure 14 kPa 35 kPa 69 kPa |
Warm-up Shift | ±0.1% FS Tota | |
Temperature | ||
Operating* °C (°F) | -18 to +65 (0 to +150) | |
Storage °C (°F) | -40 to +85 (-40 to +185) | |
Physical Description | ||
Case | Fire Retardent Glass Filled Polyester (UL 94 V-0 Approved) | |
Pressure Fittings | 6.2 mm | |
Weight | 150 grams (5.3 oz.) | |
Electrical Data (Current) | ||
Circuit | 3-Wire (Com, Out, Exc) | |
Excitation/Output* | 12 to 30 VDC/VAC / 0 to10 VDC** 9 to 30 VDC/VAC / 0 to 5 VDC** | |
pressure | 2.5 VDC (±50 mV) | |
Output Impedance | 100 Ohms | |
Circuit | 2-Wire | |
Output* | 4 to 20 mA** | |
pressure | 12 mA | |
Electrical Load | 0 to 800 Ohms | |
Electrical Data (Voltage) | ||
Circuit | 3-Wire (Com, Out, Exc) | |
Excitation/Output* | 12 to 30 VDC/VAC / 0 to10 VDC** 9 to 30 VDC/VAC / 0 to 5 VDC** | |
pressure | 2.5 VDC (±50 mV) | |
Output Impedance | 100 Ohms | |
SETRA壓力傳感器266125CLD11T1C產品參數

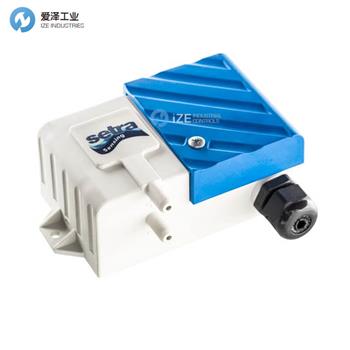

Setra Sensing 266壓力傳感器可感測差壓或表壓（靜態），并將此壓差轉換為成比例的電輸出。
266提供高電平0-10 VDC和0 -5 VDC輸出或4-20 mA輸出。
這些傳感器用于建筑物能源管理系統中，能夠以適當?shù)慕ㄖ锛訅汉蜌饬骺刂扑璧木葋頊y量壓力和流量。
266系列超低壓傳感器可用于低至0至±50 Pa滿量程的氣壓范圍，最高至5 kPa滿量程的氣壓范圍。在正常環境溫度下，靜態精度為滿量程的±1％。在-18至+65°C（0℉至+ 150℉）的溫度范圍內，對這些單元進行溫度補償，以使熱誤差低于±0.06％FS /°C（±0.033％FS /℉）。
Setra Sensing 266 pressure transducers sense differential or gauge (static) pressure and converts this pressure difference to a proportional electrical output.
The 266 is offered with a high level 0-10 VDC and 0 -5 VDC output or a 4-20 mA output.
Used in Building Energy Management Systems,these transducers are capable of measuring pressures and flows with the accuracy necessary for proper building pressurization and air flow control.
The 266 Series very low pressure transducers are available for air pressure ranges as low as 0 to ±50 Pa full scale up to 5 kPa full scale. Static accuracy is ±1% full scale in normal ambient temperature environments. The units are temperature compensated to less than ±0.06% FS/°C (±0.033% FS/℉) of thermal error over the temperature range of -18 to +65 °C (0℉ to+150℉).
SETRA壓力傳感器266系列其他常見型號：
SETRA 2661100LD11T1C
SETRA 2661250LD11T1C
SETRA 2661500LD11T1C
SETRA 266110CLD11T1C
SETRA 266125CLD11T1C
SETRA 2661500CLD11T1C
SETRA 2661050LB11T1C
SETRA 2661100LB11T1C
SETRA 2661250LB11T1C
SETRA 2661500LB11T1C
