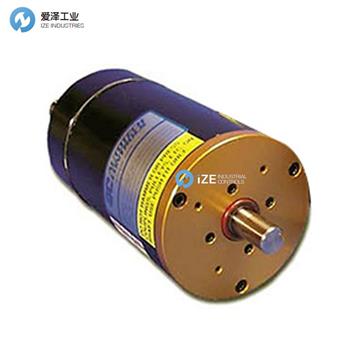

AUTOTECH變壓器SAC-RL100-010產品參數
Specification | |
Electrical | |
Frequency | 2250 Hz |
Input voltage | 1.88 V |
Input current | 6 mA |
Input power | 6.5 mW watts |
Rotor impedence with stator | |
Open circuit ZL0 | 180+ j256 ohms |
DC resistance (Rotor) | 18.3 ohms |
Output voltage (Stator) | 2.63 V +/- 5% |
Transformation ratio | 1.400 |
Mechanical | |
Resolver | SAC-RL100 |
Housing Size | Size 40 (4.02 dia.) |
Max. Stating Torque @ 25 deg. C (oz-in) | 8 |
Moment of Inertia(gm/cm2) | 45 |
Max. Slew Speed (RPM): | 5000 |
Shaft Size | 5/8" |
Max. Shaft Loading: | Axial (lbs)：50 |
Bearing life at Max.Mfr. Spec. (Rev.) | 2x109 |
Approx. Weight (lbs): | 6 |
Environmental | |
Shock | 200g for 11 mSec. |
Vibration | 20g to 2000Hz |
Operating Temperature | -67 to 248° F |
Storage Temperature | -85 to 302° F |
Enclosure | NEMA 13 |
AUTOTECH變壓器RL100系列其他常見型號：
AUTOTECH SAC-RL210
AUTOTECH SAC-RL101
AUTOTECH E6R-RL101
AUTOTECH E7R-RL101
AUTOTECH SAS-RL101-RM11
AUTOTECH SAC-RL100-010
AUTOTECH E8R-RL101
AUTOTECH E8R-RL210-xxxMC
AUTOTECH CBL-10T22-Cxxx
AUTOTECH SAC-RL500-xxx
AUTOTECH SAC-RL501-500
AUTOTECH Resolver NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AUTOTECH變壓器SAC-RL100-010的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AUTOTECH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
