MAGTROL監控單元LMU系列產品簡介
Magtrol負載監控單元專為應變計傳感器應用而設計。 LMU系列專為與Magtrol負載測量銷和負載力傳感器一起使用而開發，可提供激勵電流并放大全橋應變計的輸出信號。
負載監控單元靈活且可完全配置，因?yàn)镈IP開關和跳線可以輕松安裝設備，無需焊接連接。電平檢測器和輸出可專用于全橋輸入，電壓輸入或兩者的總和。內置的自動診斷系統可檢測任何短路或信號線故障，從而使系統可用于安全性很重要的應用中。如果檢測到問題，則兩個繼電器均被禁用，輸出電壓（相應電流）變?yōu)?gt; 10 VDC且> 20 mA。
LMU完全符合歐洲共同體（CE）標準。其IP 65鋁制外殼使系統可在惡劣環境中使用。使用SMD（表面貼裝器件）技術，LMU可實現應變片傳感器監測的最大性價比。
The Magtrol Load Monitoring Unit is specially designed for strain gauge transducer applications. Specifically developed for use with Magtrol load measuring pins and load forceweight sensors, the LMU Series provides excitation current and amplifies the output signal of full-bridge strain gauges.
Load Monitoring Units are flexible and fully configurable due to DIP-switches and jumpers which allow the unit to be easily installed—no solder connections are required. The level detectors and the outputs can be dedicated either to the full-bridge input, to the voltage input, or to the sum of both. A built-in auto-diagnostic system detects any short circuits or signal line failures, thus allowing the system to be used in applications where safety is important. If a problem is detected, both relays are deactivated and the output voltage (respective current) changes to >10 VDC and >20 mA.
The LMU is fully compatible with European Community (CE) standards. Its IP 65 aluminum housing allows the system to be used in harsh environments. Using SMD (surface mounted device) technology, the LMU allows the maximum performance/price ratio for strain gauge transducer monitoring.
MAGTROL監控單元LMU系列特點與優勢
? 用于全橋應變傳感器（靈敏度0.5至4 mV / V）
? 負載總和或個人使用的電壓輸入（無傳感器）
? 帶有繼電器輸出觸點的2至4級探測器
? 0-20 mA或4-20 mA DC電流輸出
? ±10 V電壓輸出
? 提供信號線故障和短路的連續檢測（“OK”信號）
? 包括集成測試設備（B.I.T.E.）和持續電源監控
? 兼容CE標準
? IP 65鋁制外殼
? For use with full-bridge strain gauge transducers (sensitivity 0.5 to 4 mV/V)
? Voltage input for load summation or for individual use(without sensor)
? 2 to 4 level detectors with relay output contacts
? 0–20 mA or 4–20 mA DC current output
? ±10 V voltage output(s)
? Provides continuous detection of signal line failure and short circuits (?OK? signals)
? Includes integrated test equipment (B.I.T.E.) with continuous power supply monitoring
? Compatible to CE Standards
? IP 65 aluminum housing

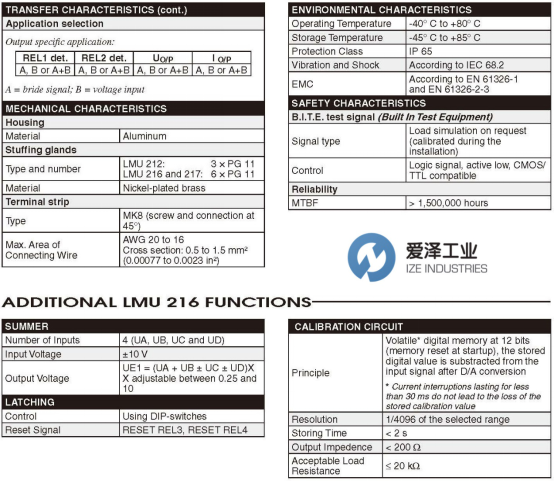

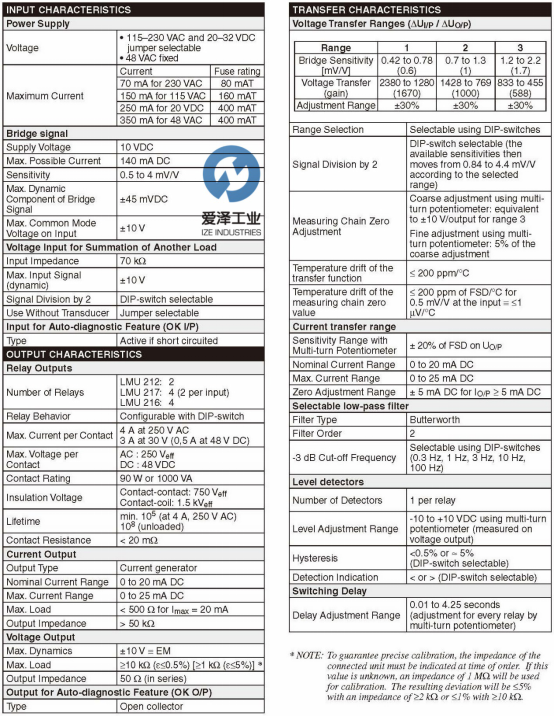

MAGTROL監控單元LMU系列技術資料

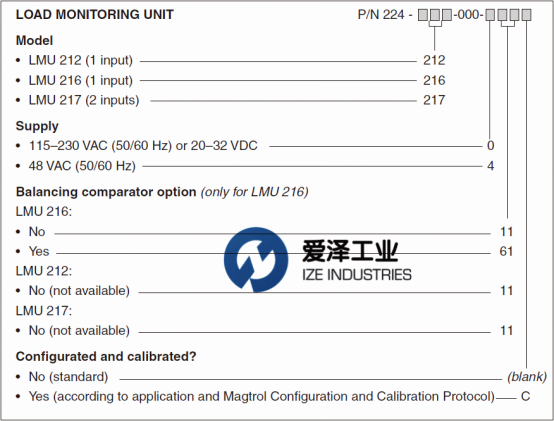

MAGTROL監控單元LMU系列選型參考

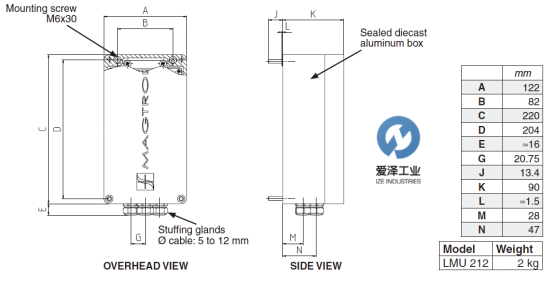

MAGTROL監控單元LMU212尺寸大小

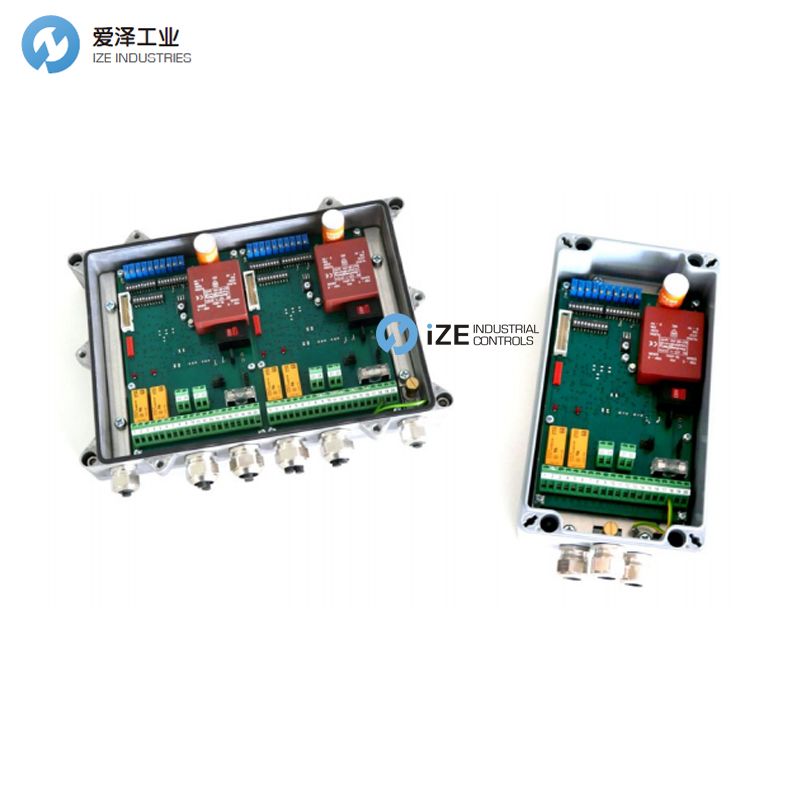

MAGTROL監控單元LMU212
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件MAGTROL監控單元部分型號：
MAGTROL監控單元LMU217
MAGTROL監控單元LMU212
MAGTROL監控單元LMU216
