Remote Communications:

Must not interfere with output

Accuracy:

Digital Output, Linear: ±0.050% of calibrated span
4 to 20 mA Output, Linear: ±0.060% of calibrated span

Damping:

Settable for a range of none to 32 seconds

RFI Protection:

0.1% error between 27 and 1000 MHz at 30 V/m field intensity

Span Limits:

0.5 and 30 inH2O, 3.5 and 200 inH2O, 1 and 30 psi, 10 and 300 psi, 100 and 3000 psi, as specified; or SI and metric equivalents.

Proof Pressure:

14,500 psi for standard transmitters

Mounting:

On process piping, on a manifold, or optional mounting bracket

Input Connection:

With process connectors to accept 1/4 NPT, 1/2 NPT, Rc 1/4, Rc 1/2, or 1/2 Schedule 80 welding neck; or 1/2 NPT PVDF inserts installed in 316 ss process covers; or prepared for a direct connect seal; or prepared for a single remote capillary connected seal, or two remote capillary connected seals.

Electronics Housing:

316 ss, or aluminum housing with epoxy finish

Modular Electronics:

Enclosed in a NEMA 4X (IEC IP66) housing sealed with O-rings for protection against moisture or other contaminants. Optional Integral LCD indicator with onboard configuration pushbuttons.

Process Cover:

Traditional Structures
Steel, 316 ss, Monel, Nickel alloy (a) or PVDF insert
Low Profile Structures:
316 ss

Sensor Materials: T

Traditional Structure:
316L ss, Nickel alloy(a), Co-Ni-Cr, Monel, Tantalum, or
Gold-Plated 316L ss
Low Profile Structures:
316L ss or Nickel alloy(a)

Approvals and Certifications:

Must be suitable for Division 1 hazardous locations, and conform to all applicable
European Union Directives. Also versions available to meet Agency flameproof and zone requirements.

Approximate Mass: (with Process Connectors)

4.2 kg (9.2 lb), with Traditional Structures;
Add 0.1 kg (0.2 lb) with Low Profile Structure LP1;
Add 0.8 kg (1.8 lb) with Low Profile Structure LP2;
Add 1.1 kg (2.4 lb) with 316 ss housing;
Add 0.2 kg (0.4 lb) with optional LCD indicator.

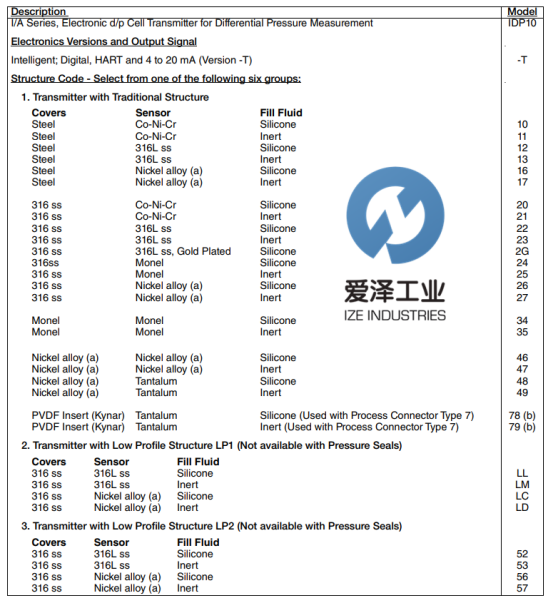

Model Code:

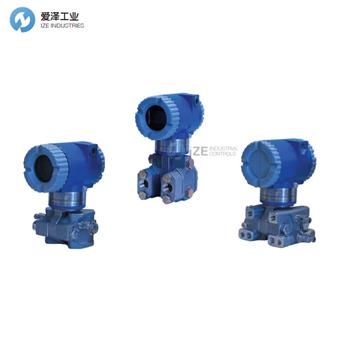

I/A Series IDP10 Intelligent d/p Cell Transmitter with HART Communication Protocol, with or without pressure seals, or equivalent.
