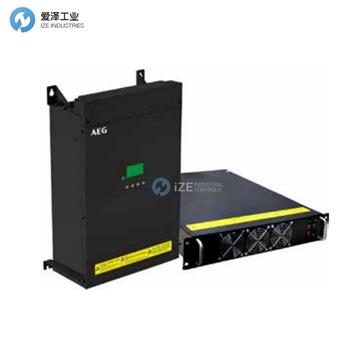

AEG有源電力濾波器ASW系列介紹
ASW系列有源電力濾波器，采用新一代64位微處理器、三電平結構主電路，控制快速，高效率、低功耗，有利于暫態穩定性的提高。ASW實時檢測非線性負載產生的電流波形，分離出諧波部分，再通過IGBT逆變電路輸出等同的諧波電流，以抵消負載諧波，確保從電網吸取的電流為正弦波，實現諧波濾除功能。此外，ASW還能提供超前或滯后的無功電流，用于改善電網的功率因數，實現動態無功補償。
The ASW series active power filter utilizes a new-generation 64-bit microprocessor and a three-level main circuit structure, offering fast control, high efficiency, and low power consumption, which contributes to improved transient stability. The ASW monitors the current waveform generated by nonlinear loads in real time, separates the harmonic components, and then outputs equivalent harmonic currents through the IGBT inverter circuit to offset the load harmonics, ensuring a sinusoidal current drawn from the grid and achieving harmonic filtering. Furthermore, the ASW can provide leading or lagging reactive current to improve the grid's power factor and implement dynamic reactive power compensation.
AEG有源電力濾波器ASW系列特性
產品特性
響應時間小于10ms，控制快速，有利暫態穩定性的提高
最高濾波次數為61次，諧波濾除率大于97%
可選多種補償模式，實現有源濾波、無功補償、不平衡電流補償按需分配
模塊化設計，方便擴展，最多10個模塊并聯
設備外部電氣故障保護，包括母線短路、電壓過欠壓、過欠頻、相序錯誤、電流反序等
友好的人機界面，8寸液晶觸摸屏，用戶可清晰了解補償前后系統波形圖、諧波頻譜圖、 THDi、 THDu、電流有效值、功率因數等系統的電能質量改善情況
Product Features
Response time less than 10ms, fast control, and improved transient stability.
Maximum filtering order: 61 harmonics, with a harmonic rejection rate exceeding 97%.
Multiple compensation modes available, enabling on-demand allocation of active filtering, reactive power compensation, and unbalanced current compensation.
Modular design allows for easy expansion, with up to 10 modules connected in parallel.
External electrical fault protection, including busbar short circuit, overvoltage/undervoltage, overfrequency/underfrequency, phase sequence error, and current reversal.
User-friendly human-machine interface with an 8-inch LCD touchscreen allows users to clearly view system power quality improvements before and after compensation, including waveforms, harmonic spectrum, THDi, THDu, current RMS, and power factor.
AEG有源電力濾波器ASW系列其他常見型號
AEG ASW-100A-4L
AEG ASW-50A-4L
AEG ASW-30A-4L
AEG ASW-690A-4L
AEG ASW-120A-4L
AEG Active power filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AEG有源電力濾波器ASW-100A-4L的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for AEG products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: jjxdch.cn.
AEG有源電力濾波器ASW系列ASW-100A-4L介紹
