VOITH轉換器DSG系列技術參數
Flow rate | Up to 140 l/min [37 gpm] at 1 bar [14.5 psi] differential pressure |
Input pressure | Up to 70 bar [1,015 psi] |
Maximum output pressure range | 0 – 35 bar [0 – 508 psi] |
MTBF (Mean Time Between Failure) | 600 years (calculated in accordance to MIL HDBK 217 and Siemens SN 29500, |
Supply voltage | 24 VDC |
Current consumption | 1.0 A (3.0 A for t < 1 s) |
Input signal | 0/4 – 20 mA |
Fail-safe operation | Fail-safe position through output pressure |
Explosion proof rating (optional) | ATEX (II 2G IIC T4, Ta = -30 to +60°C) |
Protection class | IP 65 |
Safety integrity level | SIL 2 certified, SIL 3 capable |

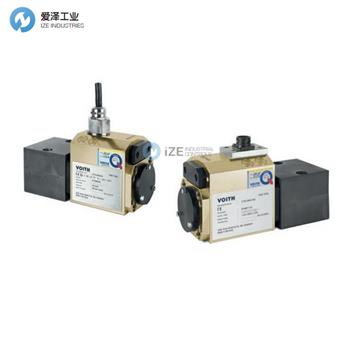

VOITH轉換器DSG系列介紹
電液 I/H 轉換器是一種電流-壓力轉換器 (CPC)，通過先導閥調節液壓定位缸。定位缸操作閥門，控制驅動機械所需的質量流量。I/H 轉換器 (CPC) 可確保對質量流量進行非常精確和高動態的控制。
I/H 轉換器將恒定的輸入壓力轉換為可變的輸出壓力。標準 0/4 – 20 mA 信號指定輸出壓力。I/H 轉換器的主要組件是液壓單元和力控電磁鐵。
I/H 轉換器設計簡潔緊湊，確?？煽窟\行。I/H 轉換器的平均故障間隔時間 (MTBF) 超過600年。設備可以長時間運行而不會出現計劃外停機，從而提高可用性。
I/H 轉換器 (CPC) 也提供冗余設計（熱冗余）：DSM I/H 轉換器模塊 (DX-CPC)。
優勢和好處：
平均故障間隔時間 (MTBF) 超過 600 年。設備運行非常可靠。生產力提升，且生產損失相關成本保持較低水平
I/H 轉換器對受污染的先導油不敏感。渦輪潤滑油適合作為工作液。只需一個供油系統即可同時供應潤滑油和先導油。維護簡便，有助于降低運營成本。
控制響應極佳，幾乎沒有滯后，分辨率優于 0.1%，確保控制快速精準。受益于穩定的工藝流程和卓越的產品質量。
由于采用行業標準接口，I/H 轉換器可以輕松集成到設備中，從而降低系統集成成本。提供標準轉接板，使 I/H 轉換器能夠與專為伍德沃德 CPC 和 CPC-II 轉換器設計的系統對接。
輸出壓力范圍可通過電位器輕松現場調節。能夠快速、無延遲地根據應用調整輸出壓力。
對于在危險區域使用，提供經過認證的防爆 I/H 轉換器。
Voith electrohydraulic I/H converters are current-to-pressure converters (CPCs) that regulate hydraulic positioning cylinders via pilot valves. The positioning cylinders operate valves, controlling the mass flow required to drive the machinery. Voith I/H converters (CPCs) ensure extremely precise and highly dynamic control of mass flow.
I/H converters convert a constant input pressure into a variable output pressure. A standard 0/4–20 mA signal specifies the output pressure. The main components of an I/H converter are the hydraulic unit and the force control solenoid.
The I/H converter's compact design ensures reliable operation. Voith I/H converters have a mean time between failures (MTBF) of over 600 years. This allows your equipment to operate for extended periods without unplanned downtime, increasing availability.
I/H converters (CPCs) are also available in a redundant (hot-redundant) design: the DSM I/H converter module (DX-CPC).
Advantages and benefits：
The Mean Time Between Failure (MTBF) is over 600 years. Your equipment operates very reliably. Productivity increases and the costs associated with lost production remain low
Voith I/H converters are insensitive to contaminated pilot oil. Turbine lubricating oil is suitable as the operating fluid. One oil supply system for both lubricating and pilot oil suffices. Maintenance is simple, which helps you lower operating costs
Very good control response, almost no hysteresis, and a resolution better than 0.1% ensures very fast and accurate control. You benefit from having a stable process with high product quality
Reduced system integration costs facilitated as connections are industry-standard which means the I/H converter can be easily integrated into your equipment. Standard adapter plates are available to allow the I/H converter to interface with systems designed for Woodward CPC and CPC II converters
The output pressure range can be adjusted easily on-site by means of pot enti ometers. This allows you to adjust the output pressure for the application quickly and without any delays
For use in hazardous areas, we offer certified explosion proof I/H converters
VOITH轉換器DSG系列其他常用型號：
VOITH DSG-B07212
VOITH DSG-B03212
VOITH DSG-B03XXX
VOITH DSG-B05XXX
VOITH DSG-B05X48
VOITH DSG-B07XXX
VOITH DSG-B10XXX
VOITH DSG-B30XXX
VOITH DSG-B35XXX
VOITH B05102
VOITH B05112
VOITH Converter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VOITH轉換器DSG-B07212的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VOITH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
