TEDEA HUNTLEIGH稱重傳感器355-200KG-C4技術參數
SPECIFICATIONS | |
PARAMETER | VALUE |
Rated capacity—R.C. (Emax) | 200 KG |
NTEP/OIML accuracy class | C4 |
Maximum no. of intervals (n) | 4000 |
Y = Emax/Vmin | 13333 |
Rated output—R.O. | 2.00 (UR matched = 2.02) mV/V |
Rated output tolerance | 0.002 ±m(xù)V/V |
Zero balance | 0.04 ±m(xù)V/V |
Zero return, 30 min. | 0.0125 ±% of applied load |
Total error | 0.0150 ±% of rated output |
Temperature effect on zero | 0.0011 ±% of rated output/°C |
Temperature effect on output | 0.0008 ±% of applied load/°C |
Temperature range, compensated | –10 to +40 °C |
Temperature range, safe | –20 to +70 °C |
Maximum safe central overload | 150 % of R.C. |
Ultimate central overload | 300 % of R.C. |
Excitation, recommended | 10 VDC or VAC RMS |
Excitation, maximum | 15 VDC or VAC RMS |
Input impedance | 380 ± 10 Ω |
Output impedance | 355 ± 5 Ω |
Insulation resistance | >2000 MΩ |
Cable length | 3 m |
Cable type | 6-wire, braided, polyurethane, dual loating screen Standard |
Construction | Stainless steel |
Environmental protection | IP68 |
Recommended torque | 22.0 Nm |
TEDEA HUNTLEIGH稱重傳感器355系列產品描述
355 型是一款采用不銹鋼材質制造的焊接彎曲式稱重傳感器。355 型采用全密封結構，防潮性能出色，并配備聚氨酯屏蔽電纜，使其能夠在惡劣環境下正常工作，同時保持其工作規格。
該稱重傳感器外形小巧、精度高且密封性好，非常適合應用于薄型平臺、稱重和包裝機、機械秤轉換以及其他各種需要密封傳感器的應用。對于危險環境，該稱重傳感器還可選擇 EEx ia IIC T6 級認證。
兩條附加的感測線將電壓反饋至稱重傳感器。通過將該電壓饋入相應的電子元件，可以完全補償由于溫度變化和/或電纜延伸引起的導線電阻變化。

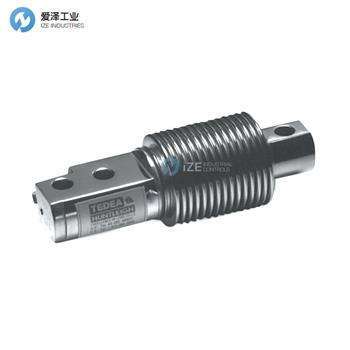

The Model 355 is a welded, flexure-type load cell constructed of stainless steel. Its fully sealed construction provides excellent moisture resistance and features a polyurethane-shielded cable, enabling it to operate in harsh environments while maintaining its operating specifications.
This load cell's compact size, high accuracy, and sealed design make it ideal for low-profile platforms, weighing and packaging machines, mechanical scale converters, and a variety of other applications requiring a sealed sensor. For hazardous environments, this load cell is also available with EEx ia IIC T6 certification.
Two additional sense wires provide voltage feedback to the load cell. This voltage is fed to the appropriate electronics to fully compensate for changes in lead resistance due to temperature variations and/or cable extension.
TEDEA HUNTLEIGH稱重傳感器355系列其他常用型號：
TEDEA HUNTLEIGH 355-200KG-C4
TEDEA HUNTLEIGH 355-5KG
TEDEA HUNTLEIGH 355-10KG
TEDEA HUNTLEIGH 355-20KG
TEDEA HUNTLEIGH 355-30KG
TEDEA HUNTLEIGH 355-50KG
TEDEA HUNTLEIGH 355-100KG
TEDEA HUNTLEIGH 355-200KG
TEDEA HUNTLEIGH 355-250KG
TEDEA HUNTLEIGH 355-500KG
TEDEA HUNTLEIGH load cells NEW + ORIGINAL+ ONE YEAR WARRANTY
