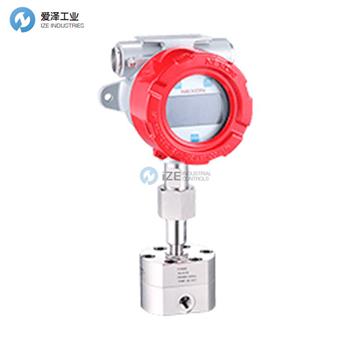

NEXON高精度渦輪流量計FTB250系列技術參數
Technical | |
Specification Table | |
Measuring range | 0.6...700L/Min |
Measuring medium | Medium and low viscosity liquid |
Accuracy | Better than ±1% of reading (optional 0.5 level) |
Repeatability | 0.10% |
Withstanding voltage (maximum) | Stainless steel 420bar |
Ambient temperature | -40..85°C |
Medium temperature | -40..120°C |
Material | |
Main body | 304 stainless steel |
Deflector | 304 stainless steel |
Turbine | 304 stainless steel |
Axis | 316L stainless steel |
Bearing | RULON123 sliding bearing |
Process connection | BSPP internal thread |
NEXON高精度渦輪流量計FTB250系列介紹
FTB250-渦輪流量計
FTB250 系列流量計配備磁檢測器和具有磁導性的轉子（葉輪）。介質的流動推動轉子（葉輪）旋轉，轉子的轉速與介質的流速成正比。磁檢測器檢測轉子的轉速，并將其轉換為標準工業電信號輸出或顯示。
應用領域
石油化工行業
液壓/潤滑系統
水處理
石油/天然氣行業
實驗設備
測試系統
產品簡介
耐高壓
耐高低溫
響應速度快
重復性與精度高
抗污染能力強
結構緊湊
FTB250-Turbine Flow Meters
The FTB250 series flowmeter contains a magnetic detector and a magnetically permeable rotor (impeller). The flow of medium drives the rotor (impeller) to rotate. The rotational speed of the rotor (impeller) is proportional to the flow velocity of the medium Compare. The magnetic detector detects the rotational speed of the rotor and converts it into a standard industrial electrical signal for output or display.
Applications
Petrochemical industry
Hydraulic /lubrication system
Water treatment
Oil/Gas industry
Experimental equipment
Test systems
Introduction
High pressure resistance
Resistant to high and low temperatures
Resistant to high and low temperatures
Fast response time
High repeatability and accuracy
Resistant to contamination
Compact structure
NEXON高精度渦輪流量計FTB250系列其他常用型號：
NEXON ELECTRONIC FTB250GF13TCCS8L1VAA420ST0
NEXON ELECTRONIC FTB250GF04TCC5L
NEXON ELECTRONIC FTB250GF06TCC10L
NEXON ELECTRONIC FTB250GF10TCC20L
NEXON ELECTRONIC FTB250GF13TCC38L
NEXON ELECTRONIC FTB250GF15TCC100L
NEXON ELECTRONIC FTB250GF20TCC130L
NEXON ELECTRONIC FTB250GF25TCC180L
NEXON ELECTRONIC FTB250GF32TCC280L
NEXON ELECTRONIC FTB250GF40TCC350L
NEXON ELECTRONIC FTB250GF50TCC700L
NEXON High-precision turbine flowmeter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NEXON高精度渦輪流量計FTB250GF13TCCS8L1VAA420ST0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NEXON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
NEXON高精度渦輪流量計FTB250系列FTB250GF13TCCS8L1VAA420ST0技術參數介紹
