SEIKA角度傳感器SB1I簡介
SB1I是壓力鑄鋁傳感器外殼（IP65），帶有集成傳感器，用于測量單軸加速度或傾斜度。
除了傳感器，該盒子還包含一個信號調理器，具有4 ... 20mA，2線輸出和一個獨立的，高度穩定的電源電壓，從電流回路饋電。此外，信號調理器包括有源低通濾波器，其上截止頻率/建立時間可以調整以適應測量任務，具有電流限制的輸出級，噪聲電壓濾波器和用于單極耦合的二極管橋。電流回路。通過將傳感器和信號調節器與殼體電隔離，可以避免由不需要的接地電流引起的干擾信號。與SB2 ..不同，SB1I可以容納更大的傾角儀，例如NG系列，它具有更高的測量精度。特殊的電子溫度補償系統可以顯著降低所實施傳感器的溫度靈敏度。
緊湊的金屬電纜導管和小外殼尺寸與2線連接相結合，可在惡劣的工作條件下使用這種高質量的測量系統。
The SB1I is a pressure die cast aluminium sensor housing (IP65) with an integrated sensor for measuring uniaxial acceleration or inclination.
In addition to the sensor, the box contains a signal conditioner with 4...20mA, 2-wire output and a separate, highly stable supply voltage feeding off the current loop. Furthermore, the signal conditioner includes an active low pass filter, whose upper cut-off frequency / settling time can be adjusted to suit the measurement task, an output stage with current limitation, a noise voltage filter and a diode bridge for unipolar coupling to the current loop. Interference signals caused by unwanted ground currents are avoided by electrically isolating sensor and signal conditioner from the housing. Unlike the SB2.., the SB1I can accommodate larger inclinometers, such as the NG-series, that have a higher measuring accuracy. A special electronic temperature compensation system can significantly reduce the temperature sensitivity of the implemented sensor.
The compact metal cable guide and small housing size in combination with the 2-wire connection enable the use of this high quality measuring system in harsh operating conditions.

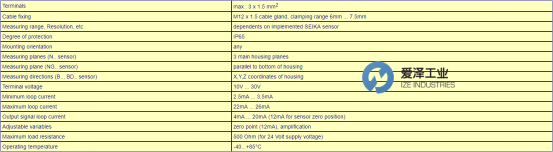

SEIKA角度傳感器SB1I技術參數

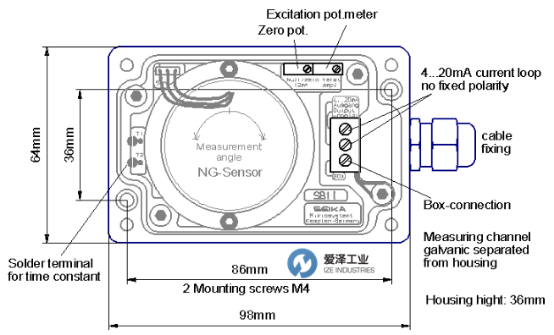

SEIKA角度傳感器SB1I外觀尺寸

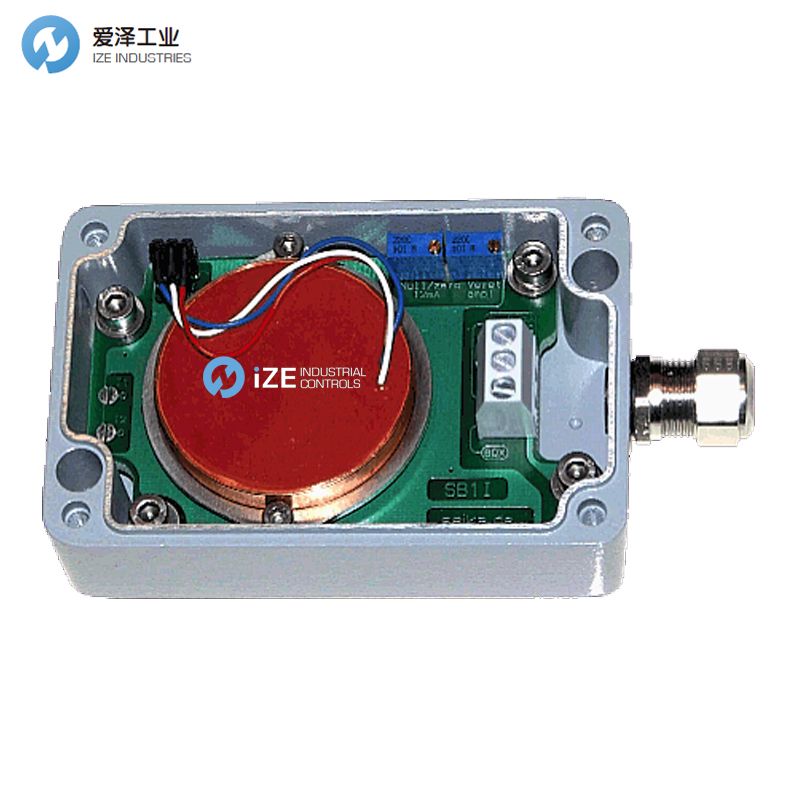

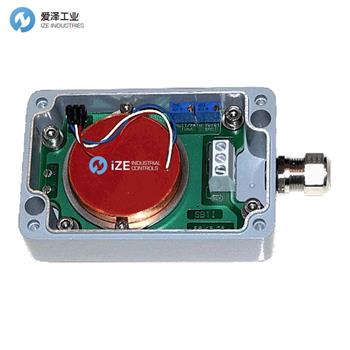

SEIKA角度傳感器SB1I
