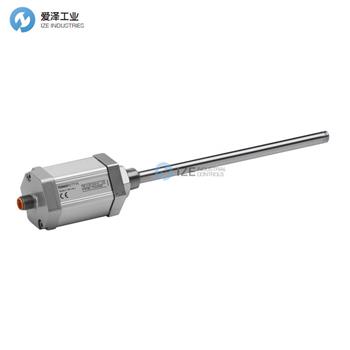

NOVOTECHNIK傳感器TMI-1000-002-423-102技術參數
Series | TMI |
Defined electr. range | 1000mm |
Mech. configuration | 002: Screw flange M 18x1.5 |
Electrical Interface | 4: Analogue Interface, supply voltage 24 VDC ±20 % |
Output signal Analogue Interface 4_ _ | 2: Current output |
Analogue Interface current output 42 _ | 3: 4 mA...20 mA |
Electrical connection | 102: 8 pin round connector M 12x1 |
NOVOTECHNIK傳感器TMI系列介紹
描述
帶模擬接口的TLM/TMI傳感器的起始和終止位置可以根據應用需求進行調整。輸出范圍（0..10 V / 10..0 V / 0..20 mA等）可以完全重新定義。最多可以通過兩個連接針腳和簡便的編程步驟同時重新校準兩個位置標記。重新編程后，仍然保證所設定的線性關系。
編程方法
位置標記需放置在新的目標起始位置。將高電平持續施加在連接針腳8（PROG）上至少3秒，即可激活編程模式。隨后，針腳4（DIAG）上的高低轉換（最低持續時間3秒）將設定起始位置。然后，將位置標記放置在目標終止位置。下一次高到低轉換（最低3秒低電平）將設定終止位置。最后，將針腳4的低電平和針腳8的高電平恢復。
如果使用帶兩個位置標記的系統，兩個位置會同時重新編程。
若在60秒內未完成編程，即從針腳8（PROG）上升沿到終點位置被讀取的時間超過60秒，起始/終止位置將被忽略，不會寫入傳感器的EEPROM。
連續編程的條件：
時間控制必須滿足要求
終止位置應大于起始位置
不應存在錯誤狀態，例如：若系統使用兩個磁鐵，則兩個磁鐵都必須正常工作
Description
The start and end position on TLM/TMI transducers with analog interfaces can be adjusted for application specific
purposes. The output range (0..10 V / 10..0 V / 0..20 mA / etc.) can be completely redefined. Up to two position
markers can be recalibrated at the same time via two connector pins and a simple programming procedure.
After reprogramming the specified linearity is still guaranteed.
Programming
The position marker(s) has to be placed at the desired new start position(s). The programming mode will be
activated when high level is applied at connector pin 8 (PROG) for at least 3 seconds. After that a high to low
transition at pin 4 (DIAG) with a minimum duration of 3 seconds will set the start position(s). Then the position
marker(s) has to be placed at the desired end position(s). The next high to low transition with a low level of at least
3 seconds will set the end position(s). Now the low level at pin 4 and then the high level at pin 8 has to be taken
back.
If a system with two position markers is used, always both positions are reprogrammed at the same time.
If the programming procedure is not completed within 60 seconds, i.e. the time between the rising edge at pin 8
(PROG) and the take over of the end position exceeds 60 seconds, the start/end position is ignored and not
programmed into the transducer's EEPROM.
Conditions for successive programming:
- the timing has to meet the conditions
- the end position(s) must be greater than the start position(s)
- an error condition must not be present, e.g. if a system with two magnets is used, both magnets have to be
functional
NOVOTECHNIK傳感器其他常用型號：
NOVOTECHNIK TMI-1000-002-423-102
NOVOTECHNIK TM1-0150-002-423-101
NOVOTECHNIK TMI-0400-008-222-301
NOVOTECHNIK TMI-0500-008-222-301
NOVOTECHNIK TMI-0700-008-222-301
NOVOTECHNIK TMI-0900-008-222-301
NOVOTECHNIK TRANSDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NOVOTECHNIK傳感器TMI-1000-002-423-102的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
