EPRO傳感器PR6423/CON041系列技術參數
Performance | PR6423 |
Linear Measurement Range | 2 mm (80 mils) |
Initial Air Gap | 0.5 mm (20 mils) |
Incremental Scale Factor (ISF) | ISO: 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C (+32 to +113°F) |
Deviation from best fit straight line (DSL) | ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F) |
Measuring Target | |
Minimum Shaft Diameter | 25 mm (0.79”) |
Target Material (Ferromagnetic Steel) | 42CrMo4 (AISI/SAE 4140) Standard Other (On Request) |
Environmental, General | |
Protection Class | IP66, IEC 60529 |
Operating Temperature Range | Sensor incl. 1m Cable:-35 to +180°C (-31 to 356°F) |
Material | Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated) |
Weight (Sensor with 1m Cable) | Approx. 100 grams (3.53 oz) |
Dynamic Performance | CON041 |
Frequency Range (-3 dB) | 0 to 20,000 Hz |
Rise Time | <15μs |
Environmental | |
Operating Temperature Range | -30 to 100°C (-22 to 212°F) |
Shock and Vibration | 5g @ 60Hz @ 25°C (77°F) |
Protection Class | IP20 |
Power & Electrical | |
Supply Voltage Range | -23V to -32V (Output Range -4V to -20V) |
Physical | |
Housing Material / Weight | PA 6.6 / ~60 grams (2.12 oz) |
Mounting | Din Rail |
Connections | Screw Terminal (Max. 1.5mm2, Wire-end Sleeves) |
EPRO傳感器PR6423/CON041系列介紹
8毫米渦流傳感器
非接觸式傳感器，專為關鍵的渦輪機械應用設計，如蒸汽、燃?xì)夂退啓C(jī)、壓縮機、齒輪箱、泵和風扇，用于測量徑向和軸向的軸動態位移、位置、偏心率和轉速。
渦流信號轉換器
傳感器信號轉換器，專為關鍵的渦輪機械應用設計，如蒸汽、燃?xì)夂退啓C(jī)、壓縮機、泵和風扇，用于測量徑向和軸向的軸位移、位置、偏心率以及轉速/關鍵參數。

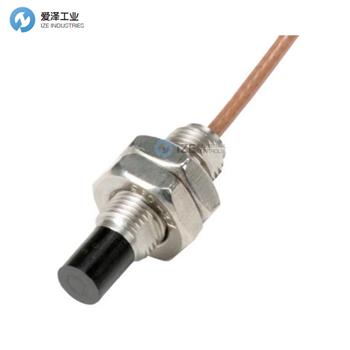

8mm Eddy Current Sensor
Non-contact sensor designed for critical turbomachinery applications such as steam, gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed.
Eddy Current Signal Converter
Sensor Signal Converter designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft displacement, position, eccentricity and speed/key
EPRO傳感器其他常用型號：
EPRO PR6423/00
EPRO PR6423/01
EPRO PR6423/10
EPRO PR6423/11
EPRO CON041/912-015
EPRO CON041 /913-030
EPRO CON041 /913-040
EPRO CON041 /914-060
EPRO CON041/914-080
EPRO CON041 /914-100
EPRO CON041 /915-040
EPRO CON041/915-060
EPRO CON041 /915-080
EPRO CON041 /915-100
EPRO CON041/916-120
EPRO CON041 /916-160
EPRO CON041 /916-200
EPRO CON041/916-240
EPRO PR6423/013-0D1-RAD+CON041/913-0D0
EPRO sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EPRO傳感器PR6423/013-0D1-RAD+CON041/913-0D00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EPRO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
EPRO傳感器PR6423/CON041系列PR6423/013-0D1-RAD+CON041/913-0D00技術參數及介紹
