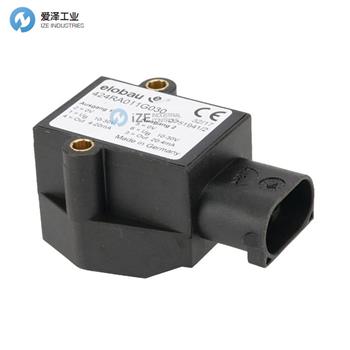

ELOBAU角度傳感器424RA111G030產品介紹
Notice | 424R = Basic number angle sensor |
Connection | A = AMP connector, Micro Quadlock 114-18063-21, coding A |
Stock | 1 = ball bearing |
Output signal 1 | 1 = 4?20 mA |
Output signal 2 | 1 = 4?20 mA |
Output signal | G = Counter-rotating |
Angle measuring range | 030 = 30° |
ELOBAU角度傳感器424R系列介紹
角度傳感器424R具有冗余設計，因此適用于安全關鍵的測量任務。該傳感器測量的角度范圍在30°到120°之間。角度傳感器424R基于非接觸式霍爾測量原理，具有極高的可靠性并確保長使用壽命。此傳感器可用于伸縮臂的角度測量、伸縮裝卸機和升降平臺等許多其他具有挑戰性的非公路應用。
產品評價：
由于采用霍爾原理的非接觸式測量，具有長使用壽命和極高的可靠性。
擁有IP67防護等級，適用于惡劣的環境條件。
耐高溫，工作溫度范圍從 -40°C 到 +85°C。
分辨率為0.1°。
提供電流或電壓輸出信號。
具備冗余輸出信號。
可配備AMP插頭（Micro Quadlock系統）或Deutsch插頭DT04-6P。
Angle sensor 424R has a redundant design and, as a result, is suitable for safety-critical measurement tasks. The sensor measures angles are between 30° and 120°. Angle sensor 424R is based on the contactless Hall measurement principle, which is extremely reliable and ensures a long service life. The sensor can be used for angle determination in telescopic arms of telescopic handlers and lifting platforms as well as for many other challenging off-highway applications.
Rate this product
Long lifetime and extremely reliable from contactless measurement with Hall principle
P67 protection class for harsh environmental conditions
High temperature resistance from -40 °C to +85 °C
Resolution 0.1°
Current or voltage output signal available
Redundant output signal
Available with AMP plug (Micro Quadlock System) or Deutsch plug DT04-6P
ELOBAU角度傳感器其他常用型號：
ELOBAU 424RA111G030
ELOBAU 424R A077P120B
ELOBAU 424R A011P120B
ELOBAU 424R A011G030
ELOBAU 424R A077P120
ELOBAU 424R D166G120B
ELOBAU 424R A166P050
ELOBAU 424R D111G120
ELOBAU 424R D177G050B
ELOBAU 424R D111P120B
ELOBAU Force transducer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ELOBAU角度傳感器424RA111G030的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ELOBAU products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
