GP50壓力傳感器370系列技術參數
ELECTRICAL | |
Output Signal: | (170) 1.6 mV/V typical |
Excitation Voltage: | (170) 5 to 16 Vdc max |
Insulation Resistance: | (170) > 100K Ω |
Input Current: | (170) 1 mA |
Circuit Protection: | RFI, EMI and reverse polarity |
MATERIALS OF CONSTRUCTION | |
Wetted Parts: (Standard shown, options available) | 17-4 PH (H1025) SST for ≤10K PSI and |
Housing: | 300 Series Stainless Steel |
ACCURACY (BFSL): Hysteresis, Non-Linearity & Repeatability @ +70 °F) | |
Standard: | ≤±0.25% FSO |
Improved: | ≤±0.10% FSO |
Zero & Span Balance: | ±0.50% FSO typ / ±1.0% FSO max |
Zero & Span Balance: | |
Process Connection: | WECO? 2” - 1502, 2002/2202 or 602 |
Electrical Connection: | Bendix PTO2E-10-6P |
Proof Pressure: | 1.5X FSO 22.5K PSI, whichever is less |
Burst Pressure: | 3.0X FSO |
Approximate Weight: | |
PRESSURE RANGES | |
0 to 5000 PSI thru 0 to 20K PSI (345 thru 1,379 BAR) | |
THERMAL SPECIFICATIONS | |
Operating Range: | -50 °F to +190 °F (-45 °C to +88 °C) |
Compensated Range: | -40 °F to +180 °F (-40 °C to +82 °C) |
Optional: | High-temp version to +350 °F (+177 °C) |
GP50壓力傳感器370系列介紹
產品概述：

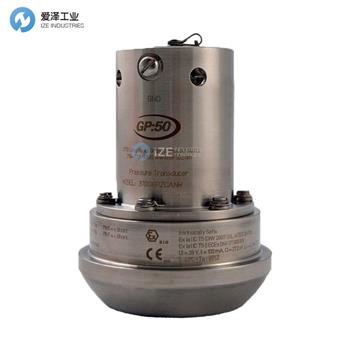

GP:50的行業專屬Model 170/270/370 WECO?錘型聯合壓力傳感器設計堅固，專為應對油田環境中苛刻的沖擊、振動和安裝挑戰而設計。該裝置與WECO? 2”-1502、2202、2002、602翼型聯合配件直接兼容。它們還提供多種輸出、量程、電氣連接和區域認證以滿足特定需求。
應用領域：
水力壓裂、水泥作業、連續油管作業和酸化
泥漿泵 / 鉆井時測量
降壓和斷流匯管
立管壓力測量
井口測量
特點：
安裝引起的零點偏移減少
高精度選項，達到±0.10% FSO
耐腐蝕、高強度緊固件消除外殼破損
危險區域認證
量程從0到1000 PSI到0到20K PSI（69到1,379巴）
兼容2” 1502、2002、2202和602翼型聯合配件
選項：
FM、CSA ATEX、CE認證*
內部、隔離分流校準
溫度輸出選項
mV/V、0到5 Vdc、4-20 mA、CANbus輸出
“連接器護罩”可防止連接器破損
高溫選項，可達+350°F（+177°C）
多種電氣連接選項。
PRODUCT OVERVIEW:
The industry exclusive Model 170/270/370 WECO? Hammer Union Pressure Transmitter from GP:50 is ruggedly designed and engineered to effectively address demanding shock and vibration and Installation challenges within the oilfield environment. Units are directly compatible with WECO? 2”-1502, 2202, 2002= or 602 wing union fittings. They are also available in multiple outputs, ranges, electrical connections, and area approvals to meet specific requirements.
APPLICATIONS:
? Fracking, cementing, coil tubing and acidizing
? Mud pumps / Measure While Drilling
? Choke and kill manifolds
? Standpipe pressure
? Wellhead measurement
FEATURES:
? Reduced zero offset due to installation
? High-accuracy option of ±0.10% FSO
? Corrosion resistant, high strength fasteners eliminate housing breakage
? Hazardous location approvals
? 0 to 1000 thru 0 to 20K PSI (69 thru 1,379 BAR)
? Compatible with 2” 1502, 2002, 2202, and 602 wing union fittings
OPTIONS:
? FM, CSA ATEX, CE*
? Internal, isolated shunt calibration
? Temperature output options
? mV/V, 0 to 5 Vdc, 4-20 mA, CANbus outputs
? `Connector Guard′ eliminates connector breakage
? High temperature option to +350 °F (+177 °C)
? Comprehensive list of electrical connections
