TRIMBLE稱重傳感器GC018-CSA產品介紹

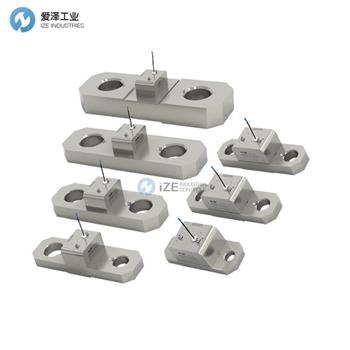

Trimble Part # GC018 無線荷載傳感器，18千磅，適用于3/4英寸繩索尺寸
產品簡介：
Trimble無線荷載傳感器安裝在起重機和提升設備的線上，是確保負載安全提升結構完整性的重要關鍵組件。Trimble GS系列荷載傳感器代表行業的質量控制標準，所有系統均經過嚴格測試和認證。
結構與材料：
采用17-4不銹鋼制造，具有卓越的強度屈服點和優異的耐腐蝕性能。
安裝與使用：
出廠預校準，無需繁瑣的校準和測試，簡化系統部署。只需安裝傳感器、無線連接到Trimble顯示器即可開始工作。
標配軍用級“D”型鋰電池，能承受從加拿大北極到迪拜沙漠的各種環境溫差。
工作溫度范圍：-30°F至+180°F（-35°C至+85°C）。
具備溫度補償功能，確保在不同溫度和環境下讀數穩定一致。
配備電壓切換器，允許使用“D”型堿性電池作為備用能源（在無法獲取鋰電池時使用）。
性能與可靠性：
單點測量精度達0.1%，多點平均誤差為1%。
電子元件封裝在凝膠中，有效防止?jié)駳庠斐傻碾娐饭收希_保設備長時間可靠運行。
Description
Trimble Part # GC018 Wireless Load Cell 18K, for 3/4″ Rope Size.
Trimble wireless load cells are installed inline on cranes and lifting equipment, and are a critically important element in the structural integrity of the safe lifting of the load. Trimble GS series load cells set the industry standard for load cell quality control programs. Load Systems International’s specific quality control program is designed to ensure that every single load cell is strictly tested and certified.
Each Trimble load cell is built from 17-4 stainless steel. The 17-4 provides superior strength yield and excellent corrosion resistance. To ensure that your system setup time is minimized, each load cell ships pre-calibrated thereby eliminating the need for time consuming calibration and testing. Simply install the load cell, connect wireless to one of the Trimble displays, and you will be ready to go to work.
Each load cell ships standard with a military grade “D’ cell lithium battery that is able to withstand temperature variances from the Canadian Arctic to the deserts of Dubai. Our load cells are rated from an operating temperature of -30oF to +180oF; -35oC to +85oC. Trimble temperature compensates your load cells to ensure a consistent load value regardless of temperature or location. Each sensor is equipped with a voltage switcher allowing a worldwide readily available “D” cell alkaline battery to be installed into the transmitter in the event you cannot easily source a lithium battery.
Accuracy on a single part of line is an impressive .1% and averages 1% on multiple parts of line.
Trimble always wants to provide the utmost reliability and takes the extra steps to pot electronics in a gel that eliminates moisture failure on the circuit board.
TRIMBLE稱重傳感器其他常用型號：
TRIMBLE GC018-CSA
TRIMBLE GC035
TRIMBLE GC012
TRIMBLE GC170
TRIMBLE LOAD CELL NEW + ORIGINAL+ ONE YEAR WARRANTY
