SENSATEC傳感器CDH-SR10V技術參數
Rating / Performance | |
Model | CDH-SR10V |
Detection Surface | Front side detection |
Detection Distance | 10 mm |
Hysteresis | 10% or less of the detection distance |
Detection Distance Variable Use Range | 4.0 to 10.0 mm |
Standard Detection Target | Grounded metal of 50 × 50 mm and 1 mm in thickness |
Power Supply Voltage | 12 V to 24 V DC (Operating voltage range : 10 V to 30 V DC) |
Power Consumption | 10 mA DC or less (With 24 V DC) |
Output | 30 V DC 100 mA DC or less NPN transistor open collector |
Output Residual Voltage | 1 V DC or less (Load current 100 mA DC) |
Operation Configuration | Normally open (On output with detection target) |
Operation Display | Red LED (Lit when On output) |
Response Frequency | 50 Hz or more |
Operating Temperature Range | -10 to 55 °C (-15 to 60 °C during storage)(Without dew condensation or freezing) |
Operating Humidity Range | 35 to 95% RH (35 to 95% RH during storage)(Without dew condensation) |
Withstand Voltage | 1 min at 500 V AC 50/60 Hz (Between the live part and case) |
Insulation Resistance | 50 MΩ or more measured with an ohmmeter at 500 V DC (Between the live part and case) |
Vibration Resistance | Durability : 2 hours in each X, Y, Z direction at 10 to 55 Hz and with peak-to-peak amplitude of 1.5 mm (At power off) |
Shock Resistance | Durability : 3 times at 500 m/s2 (approx. 50 G) in each X, Y, Z direction (At power off) |
Protection Rating | IP65 |
Case Material | ABS (Hex nut : PBT, Rubber washer : NBR) |
Cable | ?4, 3-core round cord of 0.2 mm2 and 1 m in length (Oil and heat resistant) |
Weight | Approx. 47 g (Without accessories) |
Accessories | 2 hex nuts (plastic), 2 rubber washers, 1 slotted screwdriver for adjustment |
SENSATEC傳感器CDH-SR10V產品介紹
型號：CDH-SR10V 圓柱型電容式接近傳感器
應用
檢測米粒、谷物、麩皮、木材、粉末、液體等
包裝內食品的存在檢測
化學品液位檢測，如水
特點
高靈敏度靜電容量接近傳感器，可檢測幾乎任何材質的目標物。
采用M22 P1.5塑料螺紋設計，便于安裝和位置調整。
配備18圈調節電位器，可調整靈敏度。
內部填充堅固塑料，增強耐用性。

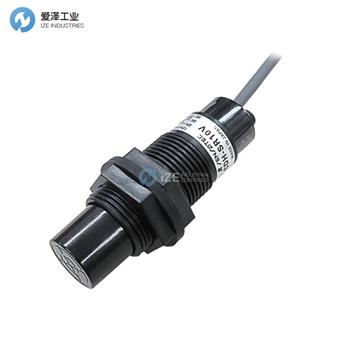

Model CDH-SR10V Cylindrical Type Capacitive Proximity Sensor
Application
Detection of rice grains, cereales, bran, wood, powders, liquids, etc.
Presence detection of food within the package
Liquid level detection chemicals, such as water
Features
High-sensitivity electrostatic-capacity proximity sensor that can detect almost any target regardless of the material.
Shaped as an M22 P1.5 plastic screw for easy installation and position adjustment.
Equipped with a 18-turn trimmer potentiometer to adjust the sensitivity.
The interior is filled with solid plastic to increase robustness.
