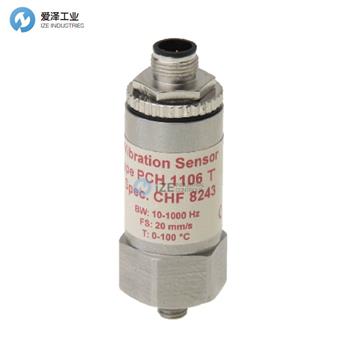

PCH振動傳感器PCH1106MK2/CHF8112規格描述
Type | |
Sensor type: | Capacitive accelerometer |
Measuring parameter: | Velocity (mm/s), Acceleration (m/s2), Displacement (mm) and °C |
Measuring range: | 0-10 mm/s, 0-20 mm/s and more, optional: temperature 0-100 °C |
Measuring accuracy: | ± 5 % |
Max. measuring range | ± 18 g |
Shock | 1000 g |
Frequency range: | 10 Hz - 1000 Hz, 18 db/oct (-3 dB, -60 dB/dec) or to be agreed upon |
Detector: | True RMS Detector or Peak -Peak |
Output | |
2 Output signals: | 4-20 mA and 1-5 V DC relative to 0-100 % of vibration measuring range. Optionally: 4-20 mA relative to temperature 0-100 °C or raw time waveform output 100 mV/g, 0.1-1000 Hz |
Connection | |
Grounding: | Ground (0 V) to housing |
Power supply: | +24 V DC, ± 10 %, max. 50 mA DC |
Operating temperature: | -20 °C to +70 °C |
Housing (IP65): | Stainless steel type 1.4305 |
Weight: | Approx 101 g |
Connector: | M 12, 4-pin |
Dimensions: | Height: 66 mm, ? 25 |
Cable (option): | 1.5, 3, 5, 10 m |
Mounting: | Threaded stud, M 8 mm |
PCH振動傳感器PCH 1106 Mk2產品介紹
振動傳感器 PCH 1106 Mk2 可以在生產環境中的多種機器上使用。它適用于監測鼓風機、通風機、泵、離心器、分離器、壓縮機和粉碎機。該振動傳感器連續監測機器振動水平，并提供與之相關的直流輸出。當連接到PLC或CTS系統時，操作員可以實現對機器的主動保護，從而限制機器損壞，降低維護成本?？蛇x配置包括在軸承殼體測量的軸承溫度輸出或原始時間波形輸出。
軸承損壞
軸承損壞通常由未檢測到的不平衡或不對中引起。因此，機器可能長時間運行在過高的振動水平下，這是導致嚴重故障和停機的主要原因。
避免計劃外停機
單純因為初始投資成本而不投資振動監測，可能是不明智的選擇。這可能會導致后續的機器維修帶來意外費用，甚至因生產中斷造成更大的經濟損失。
具有價格優勢
對于希望簡單保護免受破壞性振動影響的用戶來說，PCH 1106 Mk2是非常具有價格競爭力的解決方案，可以方便地連接到PLC或CTS系統。
功能介紹
PCH 1106 Mk2由振動傳感器和集成在不銹鋼外殼中的輸出電子組件組成。它根據DIN/ISO 10816標準監測機械振動。該傳感器可測量速度（mm/s）、加速度（m/s2）或位移，且測量數據可為真實有效值（RMS）或峰-峰值（Peak-Peak）。此外，PCH 1106 Mk2還可以配置為輸出表面溫度（°C）在4-20 mA信號中。
連接方式和輸出信號
振動傳感器可連接到PLC或機器監控系統。提供兩個直流輸出，分別為4-20 mA和1-5 V直流信號，比例為滿量程?？蛇x項包括溫度讀取或原始時間波形（100 mV/g），以替代1-5 VDC信號。
報警與預警
用戶可以在PLC或CTS系統中設置不同振動水平的報警，當達到預設值時可自動觸發預警或采取預防措施。
連接簡便
連接振動傳感器到PLC或CTS系統只需一根四線電纜。測量范圍和頻率范圍由PCH預設，出廠時即可直接使用。
多功能應用
PCH 1106 Mk2還可以通過連接便攜式儀表（如PCH 1033）進行定期測量，實時顯示固定安裝的PCH 1106 Mk2所監測的振動水平。
The vibration sensor PCH 1106 Mk2 can be used on many different machines in a production environment. It is suitable for monitoring blowers, ventilators, pumps, decanters, separators, compressors and mills. The vibration sensor continuously monitors the machine vibration level and gives a DC output in relation to this. When connected to a PLC or a CTS system the operator will gain an active protection of the machine, which limits the damages to the machine and consequently will reduce the maintenance costs. Optionally, PCH 1106 Mk2 can be delivered with a bearing temperature output measured on the bearing housing or a raw time waveform output.
Bearing damages
A bearing damage often occurs due to undetected unbalance or misalignment of a machine. Hence, the
machine runs for a very long period of time with a far too high vibration level. This is the most common reason for serious machine crashes and down time.
Avoid unscheduled production stops
Deciding not to invest in vibration monitoring only because of initial investments costs can be an unwise
decision. This will often lead to unexpected expenses due to machine repairs, not to mentioned the further economic losses due to a production stop.
Price attractive alternative
For users who prefer a simple protection against damaging vibrations the PCH 1106 Mk2 is very price attractive solution that easily can be connected to aPLC or CTS system.
Functionality
The vibration sensor consists of a vibration sensor as well as output electronics, which are embedded in a stainless steel housing. The PCH 1106 Mk2 monitors mechanical vibrations according to DIN/ISO 10816. The PCH 1106 Mk2 can be delivered to measure veocity (mm/s), acceleration (m/s2 ) or displacement
(mm) and measures in true RMS or Peak-Peak. Optionally, the PCH 1106 Mk2 can be delivered with a 4-20 mA surface temperature reading in °C as well.
The vibration sensor can be connected to a PLC or a machine monitoring system. Two DC outputs are
available for vibration level as a 4-20 mA and 1-5 V DC signal proportional to Full Scale to the PLC. Optionally, a temperature reading or a raw time waveform output, 100 mV/g, can be delivered instead of the 1-5 VDC signal.
Alarms for individual vibration levels can be programmed in the PLC or CTS system, where also a preventive action can be initiated.
Connecting the vibration sensor to the PLC or CTS system only requires a single cable with 4 wires. The measuring and frequency ranges are pre-set by PCH, so the vibration sensor is ready for use at delivery.
PCH 1106 Mk2 can also be used for periodic measurements by connecting a portable meter, like the PCH 1033, which displays the actual vibration level at the point of a permanently mounted PCH 1106 Mk2
PCH振動傳感器其他型號：
PCH PCH1106MK2/CHF8112
PCH PCH 1106 T
PCH PCH 1106
PCH Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
