EPRO渦流傳感器AMS EZ 1000系列技術參數
Specifications | |
Converter Specification | Variable based on sensors used, target material. |
Sensors Linear Measurement Gap | 5mm sensor – 1mm/40mils; 8mm sensor – 2mm/80mils |
Initial Air Gap | 5mm sensor – 0.25mm/10mils; 8mm sensor – 0.5mm/20mils |
Deviation from best fit straight line (DSL) | ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F) |
Minimum Target Size | 2 mm (80 mils) |
Minimum Shaft Diameter | 5mm Sensor: 20 mm (0.98”); 8mm Sensor: 25 mm (0.79”) |
Target Material (Ferromagnetic Steel) | 42CrMo4 (AISI/SAE 4140); P235S; C35 (AISI/SAE 1035); 34CrMo4 (AISI/SAE 4337, 4340); 26NiCrMoV14; ST 37, S235JR; X35CrMo17; Other (On Request) |
EPRO渦流傳感器AMS EZ 1000系列介紹
使用Emerson的AMS EZ 1000渦流傳感器和轉換器，可以在需要時隨時獲得所需的零件。只需一個與多種傳感器和電纜兼容的轉換器，就可以根據應用需求混合搭配備用件，同時減少轉換器庫存。此外，通過簡單易用的現場校準程序，可以更快地恢復工作。在停機后更換傳感器或在檢修/維護期間更換傳感器時，AMS EZ 1000可以讓這一過程快速且輕松。

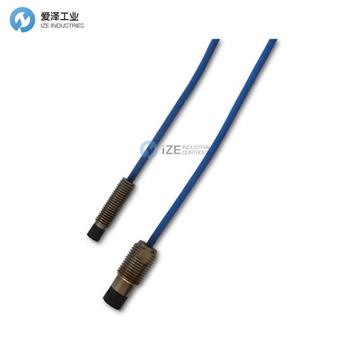

With Emerson′s AMS EZ 1000 eddy current sensor and converter you always have the part you need when you need it. With one converter that is compatible with a range of sensors and cables, you’ll be able to mix-and-match your spares to your application while reducing your converter inventory. And with an easy-to-use procedure for field calibrations, you’ll be back to work sooner. The AMS EZ 1000 makes changing out sensors following a shutdown or replacing sensors during turnarounds/maintenance quick and painless.
EPRO渦流傳感器AMS EZ 1000系列其他常用型號：
EPRO EZ1080-02-00-010+EZ1000
EPRO EZ1080-02-00-050+EZ1000
EPRO EZ1080-03-00-010+EZ1000
EPRO EZ1080-04-00-010+EZ1000
EPRO EZ1080-04-00-050+EZ1000
EPRO EZ1080-05-00-010+EZ1000
EPRO EZ1080-06-00-010+EZ1000
EPRO EZ1080-12-00-010+EZ1000
EPRO EZ1080-RM-00-010+EZ1000
EPRO EZ1081-03-00-010+EZ1000
EPRO EZ1081-04-00-010+EZ1000
EPRO EZ1081-05-00-010+EZ1000
EPRO EZ1082-RM-00-100
EPRO EDDY CURRENT MEASUREMENT SYSTEM NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EPRO渦流傳感器EZ1080-RM-00-100+EZ1000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EPRO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
EPRO渦流傳感器AMS EZ 1000系列EZ1080-RM-00-100+EZ1000技術參數及介紹
