REVERE稱重傳感器RLC系列技術參數
Specifications | |
Standard capacities (Emax) t | 0.25, 0.5, 1, 2, 3.5, 5, 10, 28, 60 |
Accuracy class according to OIML | NTEP IIIL D3 C3(3) C6(2) |
Maximum no. of verfication intervals (nlc) | 10000 3000 6000 |
Minimum verification interval | Emax/10000 Emax/15000 |
Minimum verification interval type MR | Emax/20000(1) Emax/28000 |
Rated output (=S) mV/V | 2 (1.75 for 0.25 t, 2.05 for 10 t) |
Output accuracy for multiple LC systems ±% mV/V | 0.01 |
Zero balance ±% FSO | 1 |
Combined error ±% FSO | 0.0200 0.0300 0.0230 0.0115 |
Creep error (30 minutes) ±% FSO | 0.0245 0.0123 |
Temperature effect on zero ±% FSO/5°C (/°F) | (0.0010) (0.0010) 0.0070 0.0045 |
Temperature effect on sensitivity (output) ±% FSO/5°C (/°F) | (0.0008) (0.0008) 0.0050 0.0025 |
Minimum dead load % Emax | 0 |
Maximum safe overload % Emax | 150 |
Ultimate overload % Emax | 300 |
Maximum safe side load % Emax | 100% up to 10 t |
Deflection at Emax mm | 0.12–0.20 |
Excitation voltage V | 5 to 15 |
Maximum excitation voltage V | 30 |
Input resistance Ω | 1110±50 (1100±50 for 0.25 t and 10 t) |
Output resistance Ω | 1025±25 (1025±50 for 0.25 t and 10 t) |
Insulation resistance MΩ | ≥5000 (20 for 28 and 60 t) |
Compensated temperature range °C | -10 to +40 |
Operating temperature range °C | -30 to +70 |
Storage temperature range °C | -50 to +80 |
Element material (DIN) | Stainless steel 1.4542 |
Sealing (DIN 40.050 / EN60.529) | IP66 and IP68; IP69K available for 250 kg, 5 t and 10 t |
Recommended torque on fixation bolts N*m | 12 to 14 |
ATEX opt. for potent. explosive atmospheres | II2G EEx ib IIC T4/T6, II2D, IIID T70 II3G nA II T4/T6 |
REVERE稱重傳感器RLC系列介紹

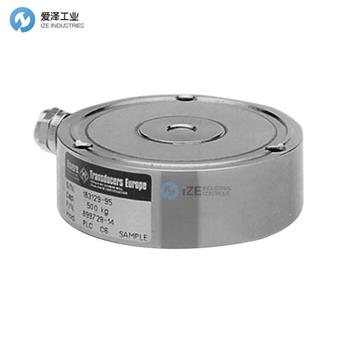

RLC 是一種低輪廓、高性能不銹鋼環扭式稱重傳感器。
全焊接結構和玻璃金屬電纜入口確保該產品能夠在食品、化學和相關加工行業的惡劣環境中成功使用。
該產品適用于中小型平臺秤、料斗和工藝稱重。
The RLC is a low proile, high performance stainless steel ring torsion type load cell.
The fully welded constuction and glass-to-metal cableentry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied process industries.
This product is suitable for small and medium platform scales, hoppers and process weighing.
REVERE稱重傳感器RLC系列其他常用型號：
REVERE 00RLC-005T-C3-00X
REVERE 00RLC-010T-C3-06X
REVERE 00RLC-001T-C3-13X
REVERE 00RLC-010T-C3-06X
REVERE 00RLC-060T-CC-00X
REVERE LOAD CELL NEW + ORIGINAL+ ONE YEAR WARRANTY
