PSM傳感器260/F3/H4/P5/9/NA產品參數
TRANSMITTER | 260：Sensor with RT168 remote transmitter 4 - 20 mA output |
PROCESS CONNECTION | F3：Tank fixing clamp |
TRANSMITTER MAXIMUM PRESSURE | H4：4m H2O |
CABLE | P：Standard 3m cable length |
CABLE LENGTH | 5：Custom cable length on request (specify length X metres) |
REMOTE ELECRONICS CABLE GLAND | 9：PG9 Cable Gland for signal cable (Standard) |
APPROVALS | NA：Safe area installation |
PSM傳感器260系列介紹
Tankstar 260系列海洋液位傳感器
Tankstar 260的海洋液位傳感器具有堅固的全焊接結構，可在船舶油箱的苛刻環境中提供可靠和準確的基于靜水壓力的液位測量，適用于從軍用艦艇到油輪的各種場合。
位于遠程放大器上的零點和跨度調整控制可實現調節，而無需接觸油箱。
Tankstar 260傳感器采用壓力敏感隔膜，其對液體壓力的位移通過L.V.D.T.精確測量。生成的輸出信號經遠程放大器轉換為4-20mA。該設計具有出色的響應能力和長期穩定性。液位傳感器具有測量淺油箱所需的靈敏度，但能夠承受至少5巴的過載而不受損。全焊接和潛水傳感器由高等級合金制成，特別選用其穩定性和耐腐蝕性。多種接頭選項以及遠程安裝放大器的能力最大化了安裝靈活性和可維護性。
260系列液位傳感器已獲得海事認證，并且免維護。隨附的工廠密封電纜采用高強度交聯聚合物外護套，適合在海水、燃料和碳?xì)浠衔镏谐掷m(xù)浸沒。該電纜允許傳感器在-40°C至+105°C的溫度范圍內使用，適合安全區安裝。
主要特點
專門為海洋應用設計和制造
提供全范圍的工藝連接和傳感器安裝選項
兼容所有常見海洋液體和貨物應用：海水、燃料和潤滑油、機艙水等
寬跨度高測量精度、長期穩定性和卓越的壓力過載抵抗能力
遠程模擬傳感器的簡單安裝和配置不需要特別工具或軟件
可靠的結構提供可靠的操作和低維護成本

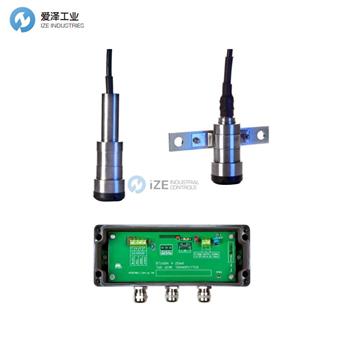

Tankstar 260 Series Marine Liquid Level Transmitter
The Tankstar 260’s marine liquid level transmitter rugged all-welded construction provides reliable and accurate hydrostatic pressure-based tank level measurement of liquid levels in the harsh environments of shipboard tanks, from military vessels to tankers.
Zero and Span adjustment controls located on the remote amplifier allow adjustment without the need to access the tank.
The Tankstar 260 transmitter employs a pressure sensitive diaphragm whose displacement in response to the liquid pressure is precisely measured by an L.V.D.T. The resulting output is converted to 4-20mA by the remote amplifier. The design combines excellent responsiveness and long-term stability. The liquid level transmitter has the sensitivity needed to accurately measure shallow tanks but will withstand a minimum of 5 Bar overload without damage. The all welded and submersible sensor is manufactured from high-grade alloys specifically selected for their stability and corrosion resistance. A wide choice of fittings and the ability to remotely mount the amplifier maximises installation flexibility and serviceability.
The 260 series level transmitter is marine approved and maintenance free. A factory sealed cable is supplied with a heavy-duty outer sheath of cross-linked polymers, suitable for continuous immersion in seawater, fuels and hydrocarbons. This cable permits use of the sensor between temperature limits of -40°C to +105°C for safe area installations
Key Features
Designed and constructed specifically for marine applications
Full range of process connections and sensor mounting options available
Compatible with all common marine liquids and cargo applications: seawater, fuel and lubricating oil, bilge water etc.
Wide span with high measurement accuracy, long term stability and exceptional pressure overload resistance.
Simple installation and configuration of the remote analogue transmitter does not require special tools or software
Robust construction gives reliable operation and low maintenance costs
PSM傳感器260系列其他常見型號：
PSM 260/F3/H4/P5/9/NA
PSM 260/F47/H8/P/DW 3/7.5/M20/NA
PSM 260/F3/H8/P25/8M/9/NA
PSM 260/F3/H8/P50/8MWG/9/NA
PSM 260/F3/H8/P25/8M/9/NA
PSM sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
