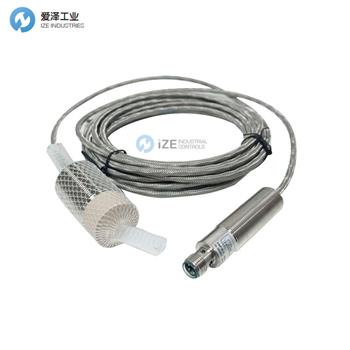

MICRO-MST傳感器MN15-30P01-180℃-5M技術參數
Technical data | |
Operating voltage: | 10...30V |
Switching rate: | 0...20Hz |
Hysteresis: | 0.3...5 typical 2% |
Reverse polarity protection: | Yes |
Short circuit protection: | Pulse |
Operating current: | 0...200mA |
No-load current: | ≤ 25mA |
Switch status indication: | Yellow LED indicator |
Standard: | IEC/EN60947-5-2-2004 |
Ambient temperature: | 0...180°C |
Switch point function: | PNP normally open |
Rated action distance: | 25mm |
Installation: | Non-flush installation |
Output polarity: | DC |
Reliable action range: | 0...12mm |
Amplifier housing: | Stainless steel |
Wiring form: | M12 connector |
Cable type: | Stainless steel armored PTFE cable |
Wire cross-section: | 3X0.34 shielded |
Housing material: | Stainless steel |
Mounting angle: | AI |
Protection level: | Amplifier 1P67, sensor IP65 |
Amplifier temperature: | -25...55℃ |
MICRO-MST傳感器MN15-30P01-180℃-5M介紹
特性:
? 標準系列
? 15mm 非齊平式安裝
? 傳感器元件的溫度擴展范圍 (0...230°C)
? 傳感器與放大之間的 5m 電纜，帶金屬護套
? 移動最小彎曲半徑 15cm
Features:
? Standard range
? 15mm non-flush mounting
? Extended temperature range of sensor element (0...230°C)
? 5m cable between sensor and amplifier with metal sheath
? Minimum bending radius for movement 15cm
MICRO-MST傳感器其他常用型號：
MICRO-MST MN15-30P01-180℃-5M
MICRO-MST MST-M30-2000VI-V1
MICRO-MST MST-M18-1000I-2M
MICRO-MST MST-M18-300NP-2M
MICRO-MST MST-M18-1000I-V1
