GERMANJET位置傳感器180系列技術參數
Specifications | |
Order Code | 180 |
Output | 0-10Vdc, 10-0Vdc dual-output. minimum load 5ΚΩ |
Measurement Type | Linear displacement |
Resolution | Infinite, restricted by output ripple |
Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
Input Protection | Polarity protection up to 30Vdc, Over voltage protection up to 36Vdc |
Current Consumption | 50-140mA (stroke range dependent) |
Dielectric Strength | 500Vdc (DC ground to machine ground) |
Repeatability | < ±0.005% of full scale |
Non-Linearity | < ±0.02% of full scale (minimum ±90μm) |
Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
Operation Temp. | -40 to 75°C, Humility 90% non-condensing |
Sealing | IP65/IP67 (with connector) |
Vibration Rating | 15g/10-2000Hz / IEC standard 68-2-6 |
Shock Rating | 100g single hit per IEC standard 68-2-27 |
EMC | Emission EN 61000-6-3, Immunity EN 61000-6-2 |

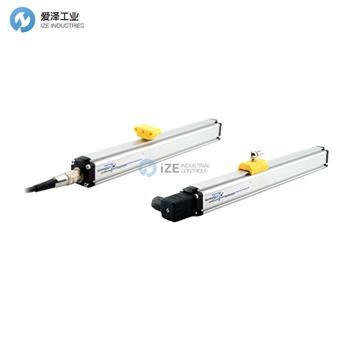

GERMANJET位置傳感器18系列介紹
18 系列非接觸式絕對位置傳感器采用非接觸式磁致伸縮測量技術，可實現精確、直接和絕對的測量。光標上沒有電接觸，消除了所有磨損，并保證了較長的機械壽命。非接觸式（浮動）光標具有多種可用的光標位置目標，安裝極其方便。
高通用型外殼（IP67，需要匹配合適的連接器）可提供全面的外部保護，適用于高污染和多塵的惡劣環境。安裝使用夾具完成，可進行精確的機械調整。18 系列是所有非接觸式絕對位置傳感器中可靠、耐用的。
The 18 series non-contact absolute position transducer adopts the non- contact magnetostricitve measuring technology for precise, direct and absolute measurement. The absence of electrical contact on the cursor eliminates all wear and guarantees almost unlimited mechanical life expectancy. The non- contact (Floating) cursor provides exceptional ease of installation with a variety of available cursor position target.
The high versatile profile housing (IP67, need to match a suitable connector) offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. Mounting is accomplished using clamps that allow precise mechanical adjustment. The 18 series is the most reliable and durable non-contact absolute position transducer among all.

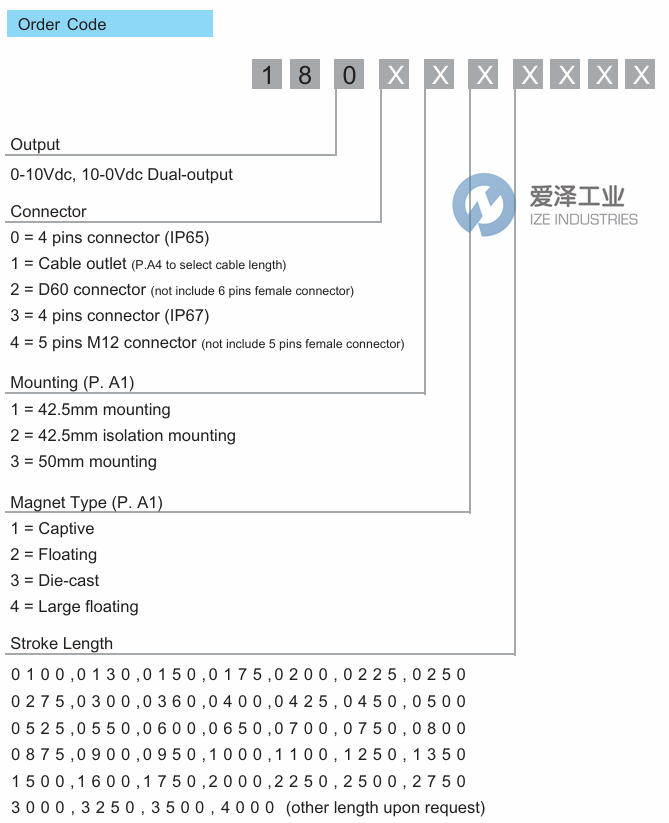

GERMANJET位置傳感器180系列選型
GERMANJET位置傳感器180系列其他常用型號：
GERMANJET 180 107622 450mm
GERMANJET 1800120450
GERMANJET 1800120650
GERMANJET 1800110250
GERMANJET 1800120500
GERMANJET TRANSDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GERMANJET位置傳感器180 107622 450mm的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GERMANJET products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GERMANJET位置傳感器180系列180 107622 450mm技術參數及選型
