MACRO SENSOR位置傳感器HSD750系列技術參數
General Specifications | |
Input Power: | ±15 V DC, ±25 mA |
Full Scale Output: | 0 to ±10 V DC |
Output Noise &Ripple: | <10 mVrms |
Frequency Response (-3dB): | 250 Hz (nominal) |
Linearity Error: | <±0.25% of FRO |
Repeatability Error: | <0.01% of FSO |
Hysteresis Error: | <0.01% of FSO |
Operating Temperature: | 0°F to +160°F (-20°C to +70°C) |
Thermal Coefficient of Scale Factor: | -0.015%/°F (nominal) (-0.027%/°C nominal) |
Vibration Tolerance: | 20 gto 2 kHz |
Shock Survival: | 100 g, 11 ms |
MACRO SENSOR位置傳感器HSD750系列介紹
Macro Sensors 的 HSD 750 系列 3/4 英寸（19 毫米）直徑直流供電 LVDT 專為各種位置測量應用而設計。這些是堅固耐用的密封傳感器，完全由不銹鋼制成，適用于一般工業用途。線圈繞組密封以抵御惡劣環境，符合 IEC 標準 IP-68，電氣端接通過密封軸向連接器。配套連接器插頭隨設備提供。HSD 750 系列傳感器使用內置電子設備來提供 AC-LVDT 的功能，例如無摩擦操作和動態響應，并增加了直流輸入和預校準直流輸出的便利性和簡單性。它們旨在與 PLC、數字指示器、A/D 轉換器、基于計算機的數據處理器和 QC 數據收集系統配合使用。
特點
? 范圍為 ±0.050 英寸至 ±10.0 英寸
? 直列連接器，包括配套插頭
? 環境密封符合 IEC IP-68 標準
? ±15 V DC 輸入，預校準的 0 至 ±10 V DC 輸出
? 非線性小于 FRO 的 ±0.25%

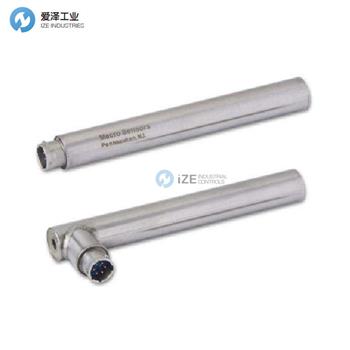

Macro Sensors’ HSD 750 Series of 3/4 inch (19 mm) diameter DC-operated LVDTs is designed for a wide range of position measurement applications. These are rugged hermetically sealed sensors, constructed entirely of stainless steel, and intended for general industrial use. The coil windings are sealed against hostile environments to IEC standard IP-68 and electrical termination is through a sealed axial connector. The mating connector plug is supplied with the unit. HSD 750 Series sensors use built-in electronics to provide the desirable features of an AC-LVDT, such as frictionless operation and dynamic response, with the added convenience and simplicity of DC input and precalibrated DC output. They are designed to operate in conjunc tion with PLCs, digital indicators, A/D converters, computer-based data processors and QC data collection systems.
Features
? Ranges of ±0.050 inch to ±10.0 inches
? In-line connector, mating plug included
? Environmentally sealed to IEC IP-68
? ±15 V DC input, precalibrated 0 to ±10 V DC output
? Non-linearity less than ±0.25% of FRO
MACRO SENSOR位置傳感器HSD750系列其他常用型號：
MACRO SENSOR HSD750-050
MACRO SENSOR HSD750-125
MACRO SENSOR HSD750-250
MACRO SENSOR HSD750-500
MACRO SENSOR HSD750-1000
MACRO SENSOR HSD750-2000
MACRO SENSOR HSD750-3000
MACRO SENSOR HSD750-5000
MACRO SENSOR HSD750-7500
MACRO SENSOR HSD750-10000
MACRO SENSOR HSD7501000-0393
