BLH NOBEL稱重傳感器KXXD系列參數
Approvals: | ||||
ATEX intrinsic safety | For KxxD-X, Baseefa02ATEX0072 Issue 4, see appendix 1 | |||
IECEx intrinsic safety | For Kxx(D)-(D) X, IECEx BAS 14.0015X Issue 2, see appendix 4 | |||
Functional safety | TüV 968/FSP 1462.00/22, see appendix 4 | |||
Environmental conditions: | ||||
PARAMETER | Min. | Typ. | Max. | UNIT |
Environmental protection / IP rating | IP67 | |||
Operating Temperature (Tamb) | -40 | +60 | °C | |
System parameters: | See LC calibration data sheet | |||
Load cell strain gauge: | ||||
Impedance | 350 | Ohm | ||
ATEX conditions: | ||||
Insulation test | 500 | Vrms | ||
Input parameters | See appendix 1 & 2 |
BLH NOBEL稱重傳感器KXXD系列介紹
KxxD-(D)是一系列具有高度防護的稱重傳感器(包括KOSD-(D)、KIMD-(D)和KISD-(D))。它們采用電阻應變計測量剪切力或張力。KxxD版本具有一個電路,而KxxD-D版本則具有兩個獨立的電路。對于KxxD-D版本,安全參數適用于每個電路單獨使用。兩個獨立的電路互相絕緣。

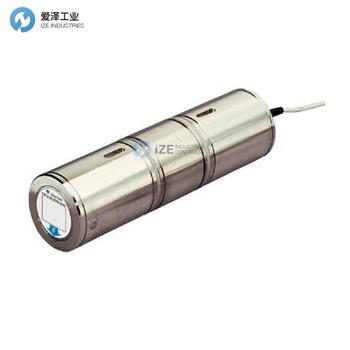

KxxD-(D) is a line of load cells (KOSD-(D), KIMD-(D) and KISD-(D)) with a high degree of protection. They incorporate resistive strain gauges, measuring the shear force or tension.
The KxxD-versions have one electrical circuit and the KxxD-D-version two separate electrical circuits. For the KxxD-D-version the safety parameters are applicable to each circuit individually. The two separate electrical circuits are insulated from each other.
BLH NOBEL稱重傳感器其他常見型號:
BLH NOBEL KISD-0701 300KN
BLH NOBEL KISD-6-100kN
BLH NOBEL Load cell NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BLH NOBEL稱重傳感器KISD-0701 300KN的疑問,請隨時與我們電聯,(021-3100 6702),我們將盡全力解決您的問題。
If you have any question for BLH NOBEL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
BLH NOBEL稱重傳感器KXXD系列KISD-0701 300KN技術參數
