AVTRON編碼器AV44AB3K1A4XX984技術參數
Code | AV44AB3K1A4XX984 S4J06001 |
Series | AV44 |
Shaft | A – 11mm w/key; Ceramic Bearings |
Flange | B – B10 Euroflange (w/shaft “1” or “A”) |
Connector | 3 – M23/12 pin (CW pin #s Reverse Phasing |
Marker Gating | K – ? AB Cycle, Sync w/A&B High |
Line Driver | 1 – 6-30V in/out (Hx–Hi Power) |
PPR (Single) | A4 – 2048 |
PPR (Dual) | XX – None |
Mods | 984 – Custom Cable Length^ |

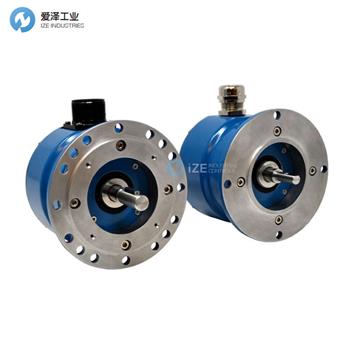

AVTRON編碼器AV44系列介紹
Avtron? 編碼器型號 AV44 實心軸增量編碼器是一種速度和位置增量傳感器（也稱為轉速表或脈沖發生器）。當安裝到電機或機器上時，其輸出與相對軸位置（脈沖計數）或速度（脈沖率）成正比。AV44 采用磁感應技術，可在零速下運行，可用于控制和儀表應用。AV44 編碼器提供 2 相輸出（A、B），相隔 90°，用于方向感應，具有補碼（/A、/B）以及標記脈沖和補碼（Z、/Z）。
AV44 的外殼采用堅固的鑄鋁制成，表面采用耐用的粉末涂層，電子元件完全封裝，以防風雨。AV44 是一種法蘭安裝編碼器，可采用行業標準“B10 歐式法蘭”或“PY”法蘭/軸配置，或安裝在腳架上進行耦合，可用于廣泛的工業應用。 AV44 不推薦用于滑輪或鏈傳動應用。
AV44 具有診斷套件，包括自適應電子設備和用于本地狀態指示的紅色/橙色/綠色 LED。還提供故障檢查輸出。使用此套件，AV44 可以自我維護，并在出現問題之前發出警報，以免問題導致非計劃停機。
The Avtron? Encoders model AV44 Solid Shaft Incremental Encoder is a speed and position incremental transducer (also known as a tachometer or pulse generator). When mounted to a motor or machine, its output is directly proportional to relative shaft position (pulse count) or speed (pulse rate). The AV44 employs magnetic sensing technology and operates down to zero speed, and it can be used for both control and instrumentation applications. The AV44 encoder offers 2-phase outputs (A, B) 90° apart for direction sensing, with complements (/A, /B) and with marker pulse and complement (Z, /Z).
The AV44’s housing is rugged cast aluminum with a durable powder coat finish, and the electronics are fully encapsulated to protect against the elements. The AV44 is a flange-mounted encoder available with industry standard “B10 Euro-flange” or “PY” flange/shaft configurations or on a foot-mount bracket for coupling for use in a wide range of industrial applications. AV44 is not recommended for pulley or chain drive applications.
The AV44 has a diagnostic package that includes Adaptive Electronics and red/orange/green LED for local status indication. A Fault-Check output is also available. With this package the AV44 can maintain itself and provide an alarm if there is a problem before the problem causes unscheduled downtime.

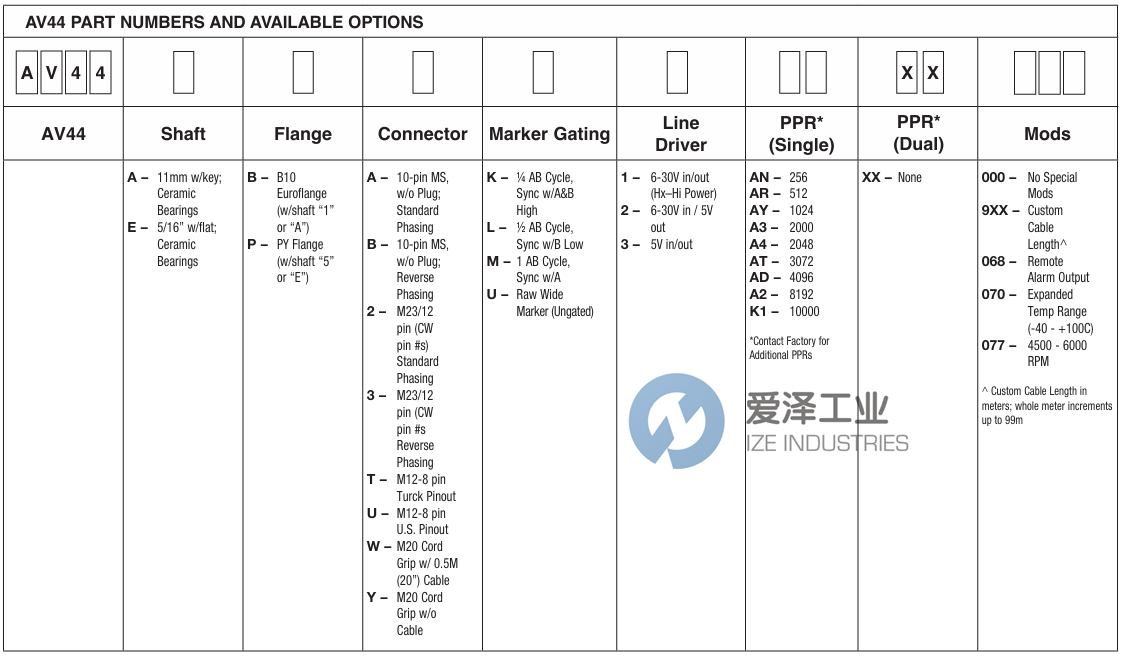

AVTRON編碼器AV44系列選型
AVTRON編碼器AV44系列其他常用型號：
AVTRON AV44AB3K1ANXX984
AVTRON AV44AB3K1ARXX984
AVTRON AV44AB3K1AYXX984
AVTRON AV44AB3K1A3XX984
AVTRON AV44AB3K1A4XX984
AVTRON AV44AB3K1ATXX984
AVTRON AV44AB3K1ADXX984
AVTRON AV44AB3K1A2XX984
AVTRON AV44AB3K1K1XX984
AVTRON ENCODERS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVTRON編碼器AV44AB3K1A4XX984的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVTRON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
AVTRON編碼器AV44系列AV44AB3K1A4XX984技術參數及選型
