S+S溫度傳感器1101-7050-5041-000技術參數
Technical details | |
Data points | temperature [°C] |
Sensors output | Perfect Sensor Protection |
Measuring range, temperature | –35...+180 °C |
Measuring range | –35...+180 °C (Tmax NTC = +150 °C, Tmax LM235Z = +125 °C) |
Process connection | by means of immersion sleeve or mounting flange (accessories) |
Insulating resistance | 100 MΩ, at +20 °C (500V DC) |
Protective tube | stainless steel, 1.4571, V4A, ? = 6 mm |
Electrical connection | 0.14 - 2.5 mm2 via terminal screws on ceramic base |
Permissible air humidity | < 95 % RH, non-precipitating air |
Protection class | III (according to EN 60 730) |
Sensor | Pt1000, DIN EN 60751, class B |
Connection type | 2-wire connection |
Testing current | < 0.6 mA |
Cable connection | adjusting screw made of metal (M 20 x 1,5); |
Connecting head | form B, material aluminum, color white aluminum (similar RAL 9006), ambient temperature –20...+100° C |
Protection type | IP 54 (according to EN 60 529) standard |
Standards | CE conformity, electromagnetic compatibility according to EN 61326, according to EMC Directive 2014/ 30/ EU |
S+S溫度傳感器TF 54系列介紹

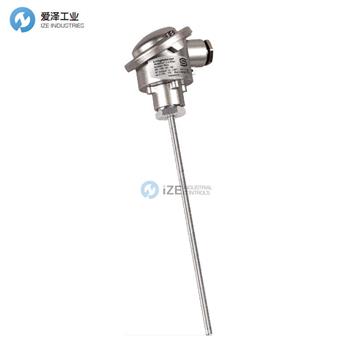

THERMASGARD? TF 54 電阻溫度計或溫度傳感器裝置，帶無源輸出、鋁制連接頭和直保護管?；締卧膳c附件組合，提供四種不同的設備版本，例如，配備單獨的不銹鋼熱套管，適用于堅固的應用。
管道溫度測量傳感器用于檢測液體或氣體介質的溫度。它用于管道、供熱工程、存儲系統、緊湊型區域供熱站、冷熱水系統、油和潤滑循環系統、機械、設備和工廠工程以及整個工業領域。
THERMASGARD? TF 54 resistance thermometer or temperature sensor device with passive output, connecting head made of aluminum, and straight protective tube. The basic unit can be compinged with accessory to provide four different device versions, e.g. with a separate stainless steel thermowell for robust applications.
The duct temperature measuring transducer serves to detect temperatures in liquid or gaseous media. It is used in pipes, heating engineering, storage systems, compact district heating stations, warm and cold water systems, oil and lubrication cycle systems, mechanical, apparatus and plant engineering and throughout the industrial sector.
S+S溫度傳感器TF 54系列其他常用型號：
S+S 1101-7050-1013-000
S+S 1101-7050-1023-000
S+S 1101-7050-1033-000
S+S 1101-7050-1043-000
S+S 1101-7050-1053-000
S+S 1101-7050-1063-000
S+S 1101-7050-1083-000
S+S 1101-7050-5011-000
S+S 1101-7050-5021-000
S+S 1101-7050-5031-000
S+S 1101-7050-5041-000
S+S 1101-7050-5051-000
S+S 1101-7050-5061-000
S+S 1101-7050-5081-000
