AVL傳感器GU22CK規格介紹
Specifications | |
Measuring range | 0 … 350 bar |
Overload | 400 bar |
Sensitivity | 34 pC/bar nominal |
Linearity | ≤±0.3% FSO |
Calibrated ranges | 0 ... 80 bar |
Natural frequency | 96 kHz |
Acceleration sensitivity | ≤0.001 bar/g axial |
Shock resistance | ≥2000 g |
Insulation resistance | ≥ 1013 Ω |
Capacitance | 8 pF |
Operating temperature range | - 40 … 400°C |
Thermal sensitivity change | ≤1 % 20 … 400 °C and 0 ... 300 bar |
Load change drift | 1.5 mbar/ms max. gradient typ. |
Cyclic temperature drift | ≤±0.6 bar |
Thermo shock error Δp | ≤±0.3 bar typ. |
Mounting bore | 6.3 mm shoulder sealed |
Cable connection | M4 x 0.35 negative |
Weight | 12.5 grams without cable |
Mounting torque | 10 Nm |

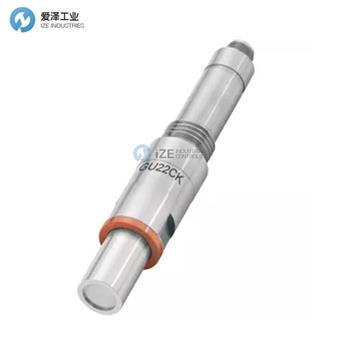

AVL傳感器GU22CK產品介紹
GU22CK 是一款精確而堅固的 6.2 毫米插頭式傳感器。它基于成熟的設計理念，可實現高精度。它具有熱優化的壓電元件，由于安裝孔和傳感器外殼之間的機械接觸最小化，因此安裝孔不會對壓力信號產生影響。熱保護可將周期性漂移降低至 ± 0.3 bar。該傳感器配備內置 SID 用于 SDM。
The GU22CK is an accurate and robust 6.2 mm plug-type sensor. It is based on a well established design concept that allows high accuracy. It has thermally optimized piezoelectric elements and no influence from the mounting bore on the pressure signal due to minimized mechanical contact between mounting bore and the sensor housing. A thermo protection can improve the cyclic drift down to ± 0.3 bar. The sensor is equipped with built in SID for SDM.
AVL傳感器其他常用型號：
AVL GU22CK
AVL GU24D
AVL GH01D
AVL GH15D
AVL GH15DK
AVL GF11D
AVL GP15DK
AVL GH14P
AVL GA16P
AVL GH13G
AVL GU22C
AVL GU21D
AVL SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVL傳感器GU22CK的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
