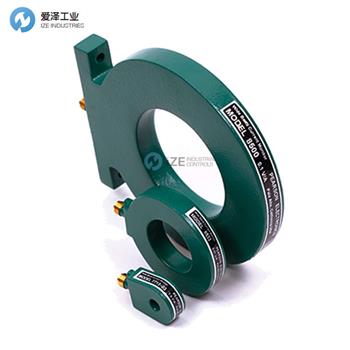

PEARSON電流監視器81220.1V/A技術參數
Sensitivity | 1 Volt/Ampere +1% |
Output resistance | 1000 Ohms |
Maximum peak current | 500 Amperes |
Maximum rms current | 40 Amperes |
Droop rate | 4 %/millisecond |
Useable rise time | 400 nanoseconds |
Current time product | 0.1 Ampere second max." |
Low frequency 3dB cut-off | 6 Hz (approximate) |
High frequency 3dB cut-off | 1 MHz (approximate) |
I/f figure | 0.6 peak Amperes/Hz |
Output connector | BNC (UG-290AU) |
Operating temperature | 0to65°C |
Weight | 22 ounces |
PEARSON電流監視器其他常用型號：
PEARSON 804R
PEARSON 81220.1V/A
PEARSON 3363
PEARSON 3382
PEARSON 4285
PEARSON 5011
PEARSON 5673
PEARSON 8365
PEARSON 8606
PEARSON 2811A
PEARSON 8535
PEARSON 4191
PEARSON 4994
PEARSON CURRENT MONITOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PEARSON電流監視器81220.1V/A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PEARSON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
PEARSON電流監視器81220.1V/A技術參數及尺寸
