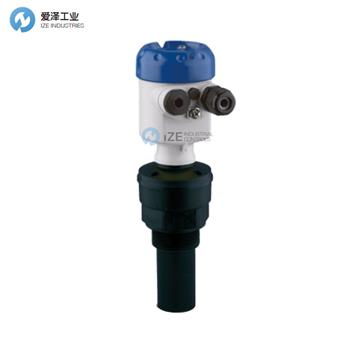

KROHNE液位變送器OPTISOUND3010C技術參數
General information | |
Product type | Level transmitter |
Product family name | OPTISOUND |
Product positioning | For basic applications up to 5 m / 16.4 ft |
Product variants | OPTISOUND 3010 C: Compact housing |
Measurement variables | Level |
Measurement principle | Ultrasonic |
Level measurement type | Continuous measurement |
Contact to measured medium | No |
Interface measurement | No |
Redundancy | No |
Measured media | Liquids, Slurries, Pastes, Solids, Bulk solids, Granulates, Powders |
Measuring range (liquids) | 0.25…5 m/ |
Measuring range (solids) | 0.25…2 m/ |
Measuring point | Open tank, Open basin, Open channel, Stockpile, Conveyor belt |
Operating conditions | |
Process pressure | -0.2…2 barg/ |
Process temperature | -40…+80°C/ |
Materials | |
Gaskets | Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez? 6375, PFA |
Wetted parts | Polyvinylidene fluoride (PVDF) |
Process connections | |
Thread connections | Male: |
Approvals/Standards | |
Ingress protection | IP66/67, NEMA4/4X/6 |
Certificates/Approvals Ex | ATEX |
Certificates/Approvals Others | EAC |
Certificates/Approvals Safety | SIL 2 |
Communication | |
Analogue outputs | 4…20 mA |
Digital outputs | HART? |
Accuracy | |
Accuracy (liquids) | ±4 mm/ |
Accuracy (solids) | ±4 mm/ |
KROHNE液位變送器其他常用型號：
KROHNE OPTISOUND3010C
KROHNE OPTISOUND3020C
