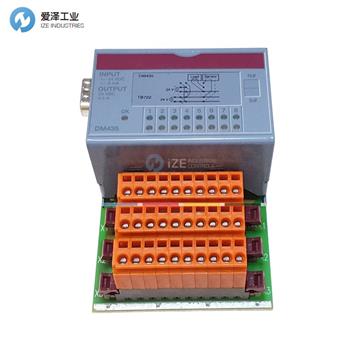

B&R模塊DM435系列規格描述
Product ID | DM435 |
General information | |
C-UL-US listed | Yes |
B&R ID code | $E3 |
Module type | B&R 2003 I/O module |
Number | |
CP430, EX270 | 4 |
CP470, CP770, CP474, CP476, CP774 | 8 |
EX470, EX770 EX477, EX777 | 8 |
Voltage and Output Monitoring (LED: OK) | Yes |
Supply voltage >18 V, outputs OK | |
Power consumption | Max. 0.5 W |
Inputs | |
Number of inputs | 8 |
Wiring | Sink or source |
Input voltage | |
Minimum | 18 VDC |
Rated | 24 VDC |
Maximum | 30 VDC |
Switching threshold | |
Low | <5 V |
High | >15 V |
Input delay | Max. 1 ms |
Input current at rated voltage | Approx. 8 mA |
Electrical isolation | Input - PLC |
Outputs | |
Number of outputs | 8 |
Type | Highside driver IC (transistor) |
Switching voltage | |
Minimum | 18 VDC |
Rated | 24 VDC |
Maximum | 30 VDC |
Continuous current per | |
Output | Max. 0.5 A |
Module | Max. 4 A |
Leakage current when switched off | 12 μA |
Overload protection | Yes |
Permanent short circuit current | Typ. 4 A |
Internal protective circuit | Yes |
Braking voltage when switching off inductive loads | 47 V |
Switching delay | |
log. 0 - log. 1 | Max. 450 μs |
log. 1 - log. 0 | Max. 450 μs |
Electrical isolation | Output - PLC |
Mechanical characteristics | |
Dimensions | B&R 2003 single-width |
B&R模塊DM435系列數據
7DM435.7 2003數字混合模塊,8輸入24 VDC,1 ms,吸收/源,8個晶體管輸出24 VDC,0.5 A
7TB710.9接線端子,10針,螺釘夾
7TB710.91接線端子,10針,籠式線夾
7TB722.9 2003接線端子,22針,螺釘夾
7TB722.91 2003接線端子,22針,籠式夾具
7TB733.9 2003接線端子,33針,螺釘夾
7TB733.91 2003接線端子,33針,籠式夾具
愛澤工業(IZE INDUSTRIES)特價經銷、常用B&R模塊型號:
B&R 7DM435.7
B&R 7TB710.9
B&R 7TB710.91
B&R 7TB722.9
B&R 7TB722.91
B&R 7TB733.9
B&R 7TB733.91
B&R 7DM438.72
B&R 7DM465
B&R module NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體,代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于B&R模塊DM435系列的疑問,請隨時致電我們,愛澤工業(86-021-31006702)。我們將盡全力解決您的問題。
If you have any question for B&R products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com/browse our website: jjxdch.cn.
B&R模塊DM435系列技術數據
